SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)

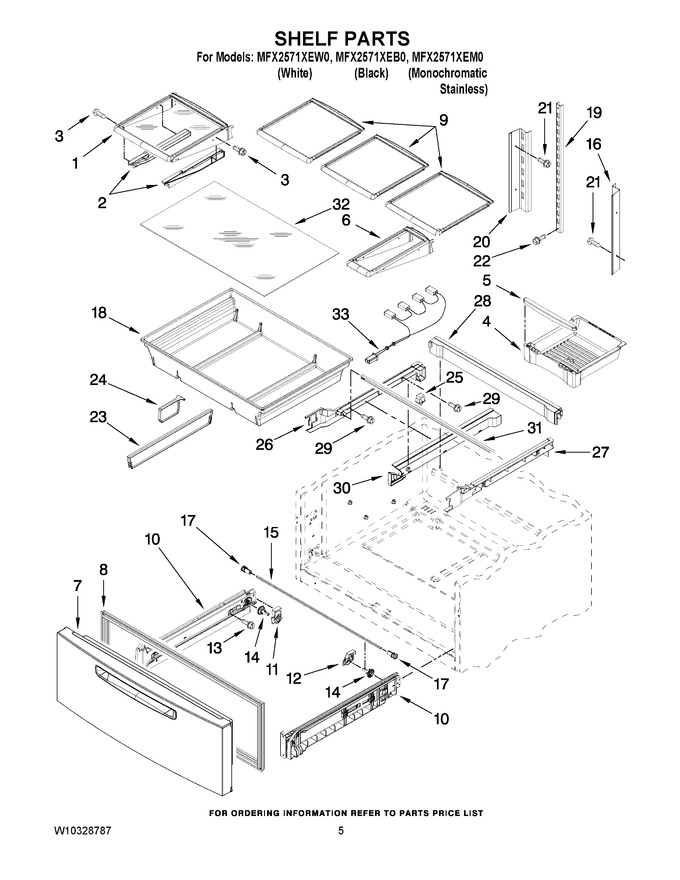

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12883508SP		Shelf-glide   (Replaces: 12883508SP)				$ 305.36
2	WPW10194031		Glide Snack Pan-lh   (Replaces: W10194031)				$ 125.17
2	WPW10194032		Glide Snack Pan-rh   (Replaces: W10194032)				$ 121.61
3	W11233072		Screw   (Replaces: 12990302SP)			Immediately	$ 14.02
4	W10319331		Pan-snack				$ 61.34
5	W10158455		Handle-snack Pan		Appelez-nous	-
6	W11197490		Shelf-stat-mini   (Replaces: 12885501)				$ 230.52
7	13107102S		Pantry Door (stainless)		Appelez-nous	-
7	13107102W		Pantry Door (white)		Appelez-nous	-
7	13107102B		Pantry Door (black)		Appelez-nous	-
8	W10443325		Gasket-pantry (white)   (Replaces: W10294107)			Immediately	$ 287.57
8	W11625002		Gasket-pantry (black)   (Replaces: W10294113)				$ 231.55
8	WPW10443326		Gasket-pantry (apollo Grey)   (Replaces: W10294114)				$ 331.11
9	W11402525		Shelf, Glide (3)   (Replaces: 12883507)				$ 223.28
10	W11093713		Adapter-pantry (left)   (Replaces: W10295155)				$ 134.70
10	W11093714		Adapter-pantry (right)   (Replaces: W10295157)				$ 131.73
11	W10277360		Gear Spur-l & R				$ 30.33
12	W10294414		Cover-gear (right)				$ 79.50
12	W10284709		Cover-gear (left)				$ 70.37
13	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 10.82
14	67006529		Screw   (Replaces: 12991701)				$ 12.83
15	W10298176		Shaft-rack		Appelez-nous	-
16	W10251965		Ladder, Side Rh				$ 29.60
17	WPW10277361		Collar-gear   (Replaces: W10277361)				$ 11.51
18	WPW10530656		Pan-pantry-po   (Replaces: W10268846)				$ 229.41
19	W10273464		Ladder, Center			Immediately	$ 28.75
20	W10251968		Ladder, Side				$ 26.08
21	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
22	W10709795		Screw   (Replaces: 12990515)				$ 13.13
23	W10285573		Divider-pantry-lrg		Appelez-nous	-
24	W10285594		Divider-pantry-sm		Appelez-nous	-
25	W11291138		Switch-rocker   (Replaces: 12466104)			Immediately	$ 36.67
26	W10311723		Rail-lh Pantry				$ 135.27
27	W11715934		Rail-rh Pantry   (Replaces: W10311726)				$ 43.64
28	W10311727		Rail-rear Pantry		Appelez-nous	-
29	WP98165		Screw   (Replaces: 12990521)				$ 8.00
30	W10311725		Cover-lh Pantry				$ 17.37
31	12227305		Brace-pantry		Appelez-nous	-
32	WPW10296571		Glass-pantry Shelf   (Replaces: W10296571)				$ 235.33
33	W10335721		Harness-rc-led   (Replaces: W10284534)		Appelez-nous	-
