SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Freezer Door


05 - Refrigerator Door


06 - Unit


07 - Air Flow


08 - Control, Lit/optional

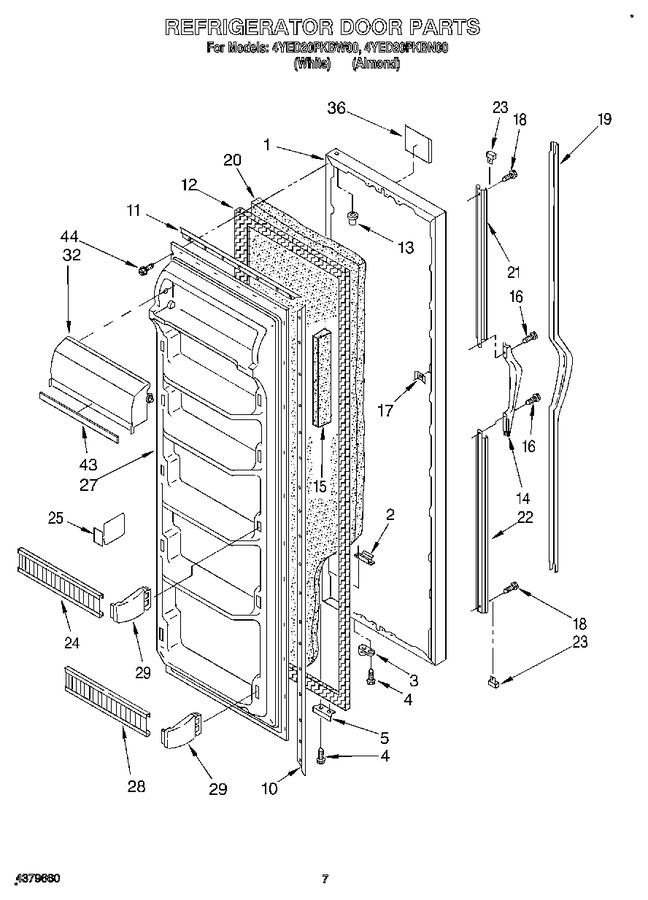

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362025		Refrigerator Door Panel (almond (also Order Item 20))		Appelez-nous	-
1	4362024		Refrigerator Door Panel (white)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
4	WP999367		Screw   (Replaces: 489367)				$ 8.56
5	2155334		Bracket, Door Stop		Appelez-nous	-
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	987009		Handle		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
16	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
17	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
18	489075		Screw		Appelez-nous	-
19	2148102		Insert, Handle (white)		Appelez-nous	-
19	2148103		Insert, Handle (almond)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap		Appelez-nous	-
24	2170586		Trim, Door Shelf (2)		Appelez-nous	-
25	2160050		Divider, Shelf		Appelez-nous	-
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2170587		Trim, Door Shelf (2)		Appelez-nous	-
29	4388286		Retainer, Door Trim (8)   (Replaces: 1124877)				$ 16.10
32	2167396		Compartment Door		Appelez-nous	-
36	2166586		Nameplate (almond Model)		Appelez-nous	-
36	2166575		Nameplate (white Model)		Appelez-nous	-
43	2162896		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
