SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

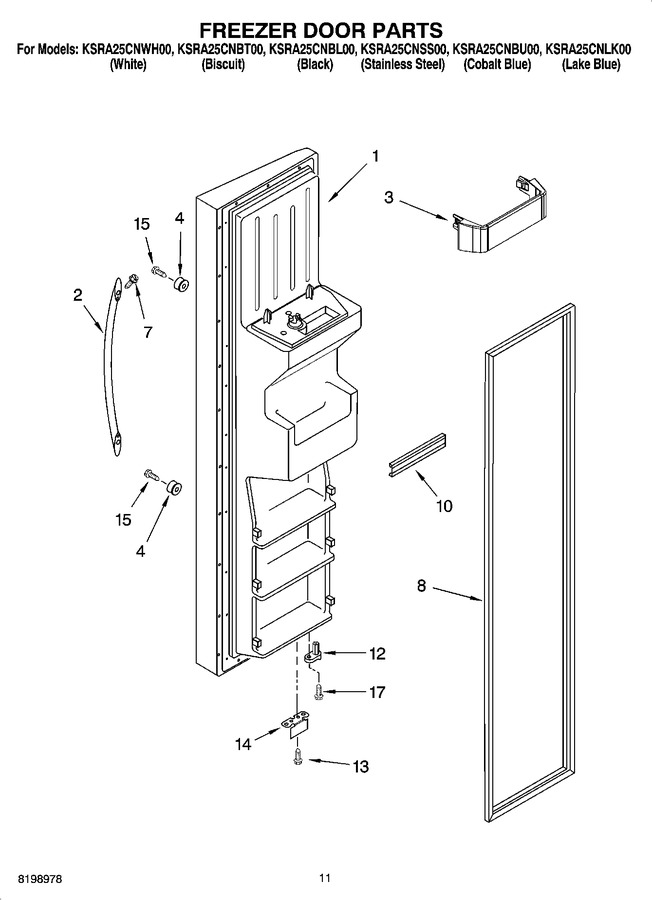

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301203W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2301203T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2301203B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2301203SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	2301203BU		Freezer Door (includes 8 And Dispenser Front Parts) (cobalt Blue)		Appelez-nous	-
1	2301203LK		Freezer Door (includes 8 And Dispenser Front Parts) (lake Blue)		Appelez-nous	-
2	2255512W		Handle (white)		Appelez-nous	-
2	2255512ES		Handle (european Silver)		Appelez-nous	-
2	2255512S		Handle (stainless)		Appelez-nous	-
2	2255512B		Handle (black)		Appelez-nous	-
2	2255512T		Handle (biscuit)		Appelez-nous	-
3	2223559		Trivet (4)				$ 28.77
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
7	8533976		Set Screw				$ 8.35
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
15	WP488163		Screw   (Replaces: 488208)				$ 7.54
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
