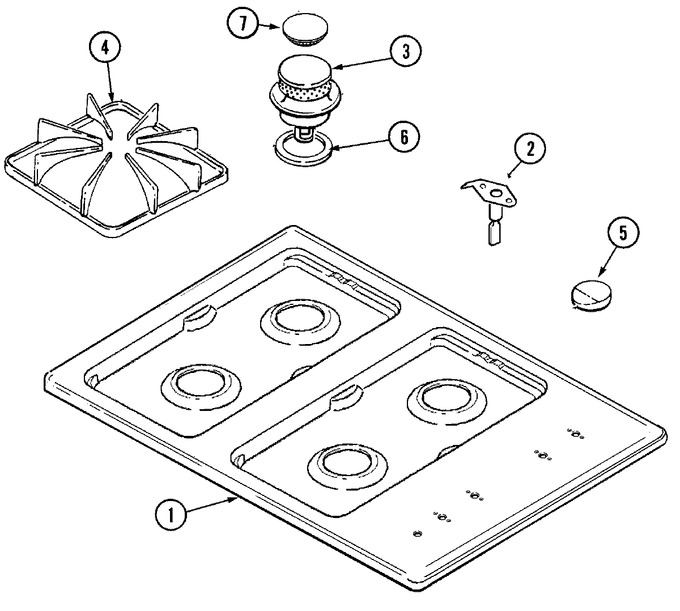

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 1 | 74004655 | Top, Main | 10 |
|
- | ||||
| 2 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 26.94 | |||
| 2 | 74004410 | Igniter | 10 |
|
$ 26.47 | ||||
| 3 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 4.62 | ||||
| 3 | WP3412D024-26 | Burner, Sealed (gry) (Replaces: 74003965) | 10 |
|
Immediately | $ 100.30 | |||
| 3 | WP3412D021-26 | Burner, Sealed (gry) (Replaces: 74004426) | 10 |
|
$ 205.75 | ||||
| 4 | 74001770 | Grate, Burner (gray) | 10 |
|
- | ||||
| 4 | 74005301 | Grate (gray) | 12 |
|
$ 73.80 | ||||
| 5 | 8008P039-60 | Grommet, Glass | 10 |
|
- | ||||
| 5 | WP74001300 | Knob, Infinite (wht) (Replaces: 74001300) | 10 |
|
$ 21.53 | ||||
| 6 | 74002745 | Gasket, Burner | 10 |
|
- | ||||
| 7 | 71003040 | Cap, Burner (gry) | 10 |
|
- | ||||
| 8 | 5111A261-60 | Wire, Igniter - R | 10 |
|
- | ||||
| 8 | 5125A234-60 | Wires, Loose | 10 |
|
- | ||||
| 8 | 5111A610-60 | Wire, Igniter - R | 10 |
|
- | ||||
| 9 | 74004631 | Manual, Use & Care | 10 |
|
- | ||||
| 9 | 74004654 | Manual, Use & Care (frch) | 10 |
|
- |
