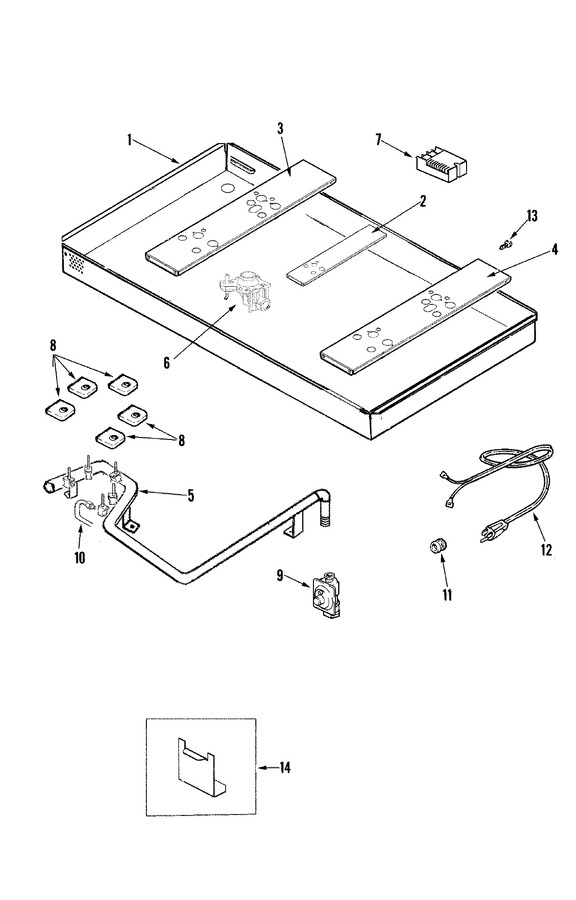

01 - Body
02 - Supplemental Information
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007797 | Bottom, Burner Box | 10 |
|
- | ||||
| 2 | 3801F876-51 | Bracket, Orifice Holder (ctr) (Replaces: 74007811) | 10 |
|
- | ||||
| 3 | W10709795 | Screw, Hex Head (Replaces: 74009253) | 11 |
|
$ 13.79 | ||||
| 3 | 74009250 | Bracket, Orifice Holder | 11 |
|
- | ||||
| 3 | 74007787 | Bracket, Orifice Holder | 10 |
|
- | ||||
| 4 | 74009250 | Bracket, Orifice Holder | 11 |
|
- | ||||
| 4 | W10709795 | Screw, Hex Head (Replaces: 74009253) | 11 |
|
$ 13.79 | ||||
| 4 | 74007787 | Bracket, Orifice Holder | 10 |
|
- | ||||
| 5 | 74007798 | Manifold Pipe/valve Assembly | 10 |
|
$ 647.86 | ||||
| 5 | WP74001380 | Seal, Manifold Pipe (Replaces: 74001380) | 10 |
|
$ 68.73 | ||||
| 6 | WP7527P026-60 | Holder, Orifice (9.5k) (Replaces: 74007814) | 10 |
|
Immediately | $ 111.63 | |||
| 6 | WP7527P023-60 | Holder, Orifice (5k) (Replaces: 74007816) | 10 |
|
$ 114.37 | ||||
| 6 | WP8523793 | Ignitor, Sourdillion Assy. (Replaces: 74007473) | 10 |
|
Immediately | $ 40.17 | |||
| 6 | WP74007691 | Holder, Orifice (9.2k) (Replaces: 74007691) | 10 |
|
Immediately | $ 125.14 | |||
| 6 | WP7527P028-60 | Holder, Orifice (12.5k) (Replaces: 74007813) | 10 |
|
Immediately | $ 117.56 | |||
| 7 | 8215557 | Module, Spark (Replaces: 74007397) | 10 |
|
Immediately | $ 139.88 | |||
| 7 | 74004282 | Module, Spark (2+0) | 10 |
|
$ 195.66 | ||||
| 8 | WP74007806 | Swtch/wire Lead Assy (Replaces: 74007806) | 10 |
|
$ 246.74 | ||||
| 9 | W11087445 | Regulator, Pressure (Replaces: 74007747) | 10 |
|
Immediately | $ 211.40 | |||
| 10 | 74007821 | Tube, Burner (rr) | 10 |
|
- | ||||
| 10 | 74007819 | Tube, Burner (ctr) | 10 |
|
$ 28.90 | ||||
| 10 | 74007815 | Tube, Burner (lf) | 10 |
|
$ 28.90 | ||||
| 10 | 74007820 | Tube, Burner (rf) | 10 |
|
$ 28.90 | ||||
| 10 | 74007818 | Tube, Burner (lr) | 10 |
|
$ 28.90 | ||||
| 11 | 550707 | Bushing - Strain Relief | 10 |
|
- | ||||
| 12 | 74007817 | Cord, Power | 10 |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 8.25 | |||
| 14 | WP3801F935-51 | Bracket, Tie Down (Replaces: 74007709) | 10 |
|
$ 43.27 | ||||
| 14 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 10 |
|
$ 8.66 |
