SELECT A DIAGRAM

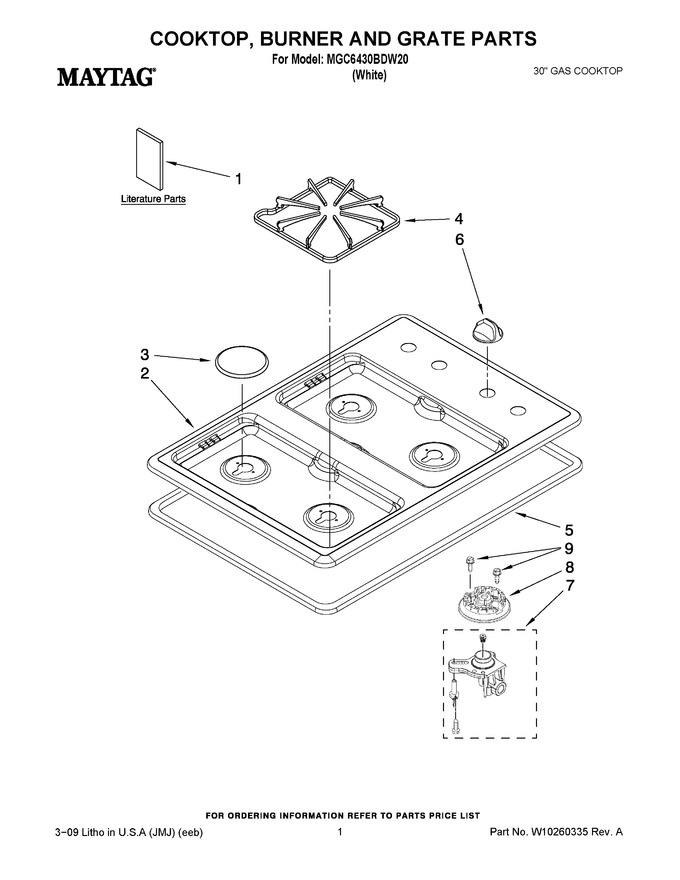

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P595-60 | Installation Instructions |
|
- | |||||
| 1 | 8112P339-60 | Use & Care Guide |
|
- | |||||
| 1 | 8104P828-60 | Wiring Diagram (english) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 7918P476-60 | Cooktop (white) |
|
- | |||||
| 3 | W11189648 | Cap, Burner (grey) (Replaces: W10237940) |
|
- | |||||
| 4 | 7518P273-60 | Grate, Burner (grey) |
|
- | |||||
| 5 | 12002793 | Seal, Foam (Replaces: 8270P188-60) |
|
$ 82.80 | |||||
| 6 | WP74011276 | Knob, Control (4) (white) (Replaces: 7733P490-60) |
|
Immediately | $ 23.82 | ||||
| 7 | WP7527P028-60 | Holder, Orifice (lf) (Replaces: 7527P028-60) |
|
Immediately | $ 117.56 | ||||
| 7 | WP7527P023-60 | Holder, Orifice (rr) (Replaces: 7527P023-60) |
|
$ 114.37 | |||||
| 7 | WP7527P026-60 | Holder, Orifice (rf & Lr) (Replaces: 7527P026-60) |
|
Immediately | $ 111.63 | ||||
| 8 | WPW10406797 | Head, Burner (Replaces: 8286182) |
|
$ 92.91 | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 8.56 |
