SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

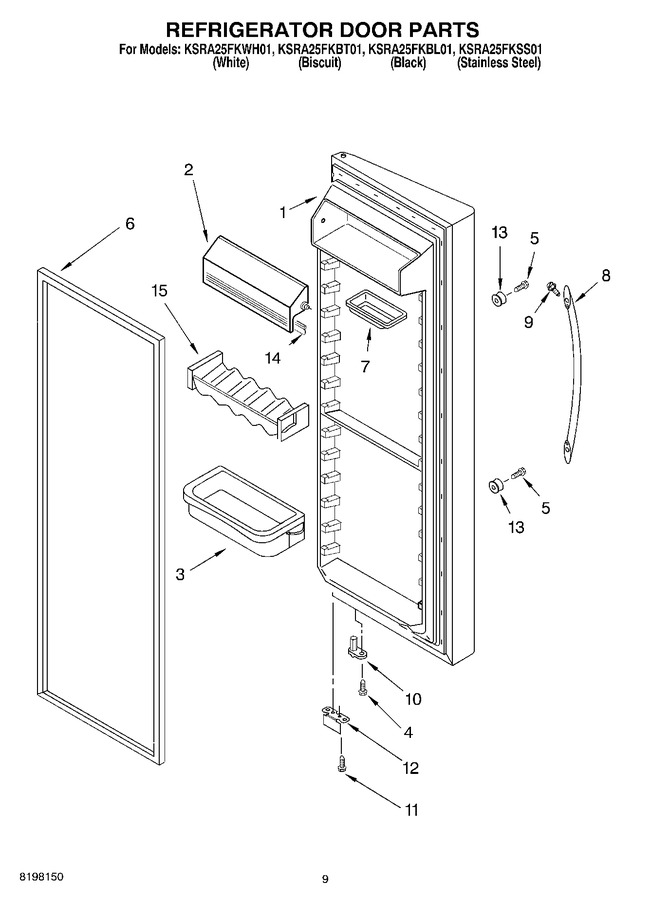

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206779T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2206779B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2206779SB		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	2206779W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2182399		Compartment Door		Appelez-nous	-
3	2205821		Shelf Bin (4)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	2165792		Butter, Dish		Appelez-nous	-
8	2204454W		Handle (white)		Appelez-nous	-
8	2204454T		Handle (biscuit)		Appelez-nous	-
8	2204454S		Handle (stainless)		Appelez-nous	-
8	2204454B		Handle (black)		Appelez-nous	-
9	98654		Set Screw		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (chrome)				$ 5.83
13	2203690		Stud, Handle		Appelez-nous	-
14	2159124		Gasket		Appelez-nous	-
15	2193409		Beverage Holder				$ 48.13
