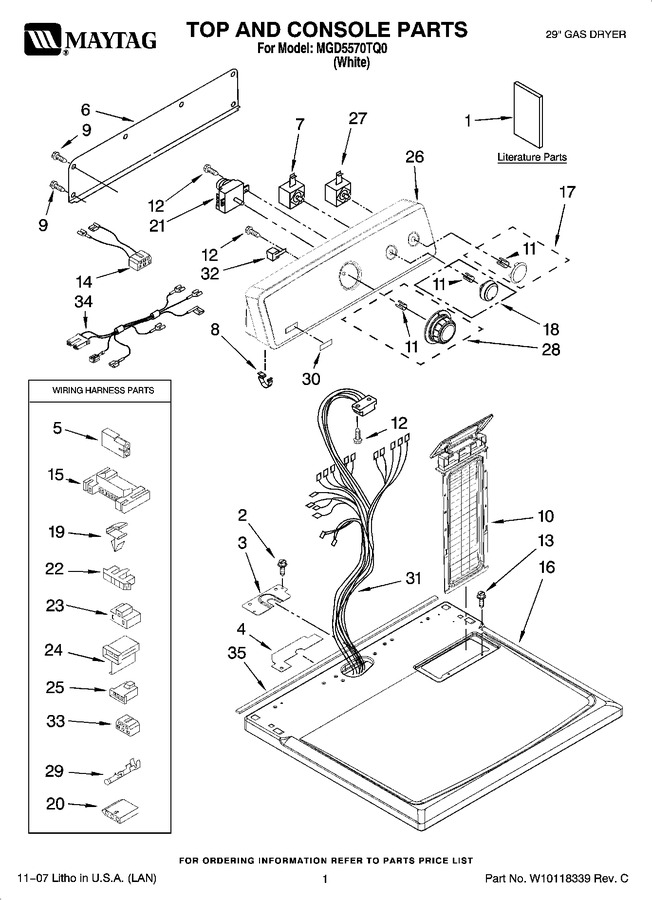

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151609		Use & Care Guide		Appelez-nous	-
1	8576817		Wiring Diagram		Appelez-nous	-
1	W10150652		Sheet, Cycle Feature		Appelez-nous	-
2	W11693756		Screw, 8-18 X 3/4   (Replaces: 359625)			Immediately	$ 14.06
3	8565981		Bracket, Harness		Appelez-nous	-
4	W10118608		Seal-harness		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10112576		Panel, Rear Console				$ 61.99
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
8	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	W10110861		Wire, Jumper (temperature)		Appelez-nous	-
15	3395683		Connector, Motor			Immediately	$ 51.86
16	W10112597		Top		Appelez-nous	-
17	W10110031		Knob, Push-to-start		Appelez-nous	-
18	WPW10110029		Knob, Control (1)   (Replaces: W10110029)				$ 52.77
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
20	3936144		Connector				$ 20.21
21	8578909		Timer Assembly (60 Hz.)		Appelez-nous	-
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.20
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	W10086724		Shell & Control Panel Assembly (includes: Illus. 30)		Appelez-nous	-
27	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
28	W10110030		Timer-knob Assembly				$ 26.39
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
30	W10203949		Badge Assembly   (Replaces: W10112569)				$ 68.61
31	W10110866		Harness, Wiring		Appelez-nous	-
32	WP694419		Mini-buzzer   (Replaces: 694419)				$ 127.67
33	3347243		Connector 6-circuit		Appelez-nous	-
34	W10119726		Wire, Jumper (timer Buzzer)		Appelez-nous	-
35	W10112267		Foam-seal Console Bracket				$ 92.89

    View Diagram in Separate Window       Print Part List
