SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Optional

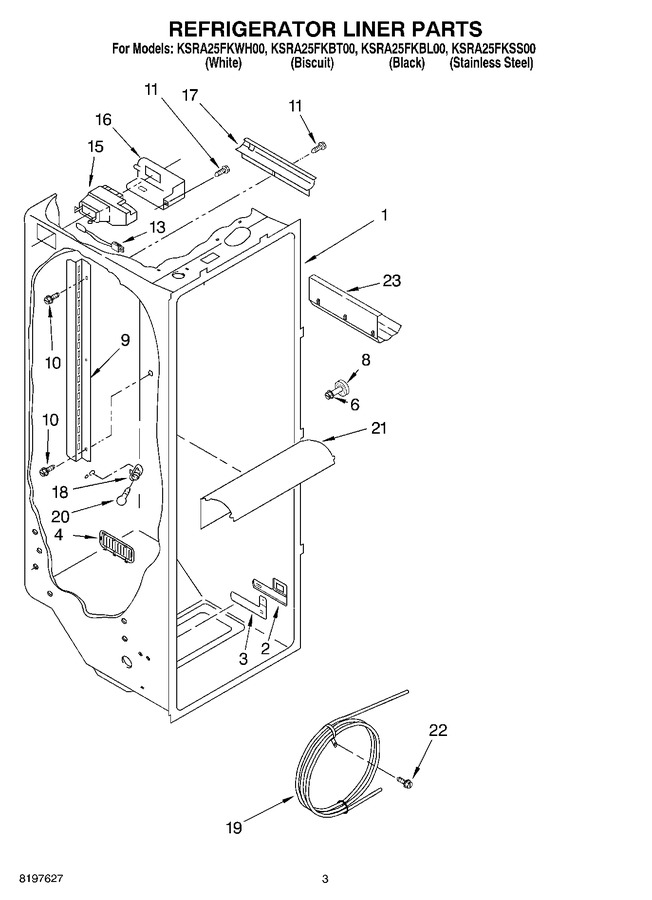

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
6	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
8	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
13	WP2188819		Thermistor   (Replaces: 2216113)			Immediately	$ 46.01
15	WP2216112		Air Diffuser Assembly   (Replaces: 2216112)			Immediately	$ 376.80
16	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 138.15
17	2150331		Cover, Wiring				$ 25.62
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
19	WP2256126		Reservoir   (Replaces: 2209687)				$ 177.29
20	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
21	2206269		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 24.78
NI	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
