SELECT A DIAGRAM

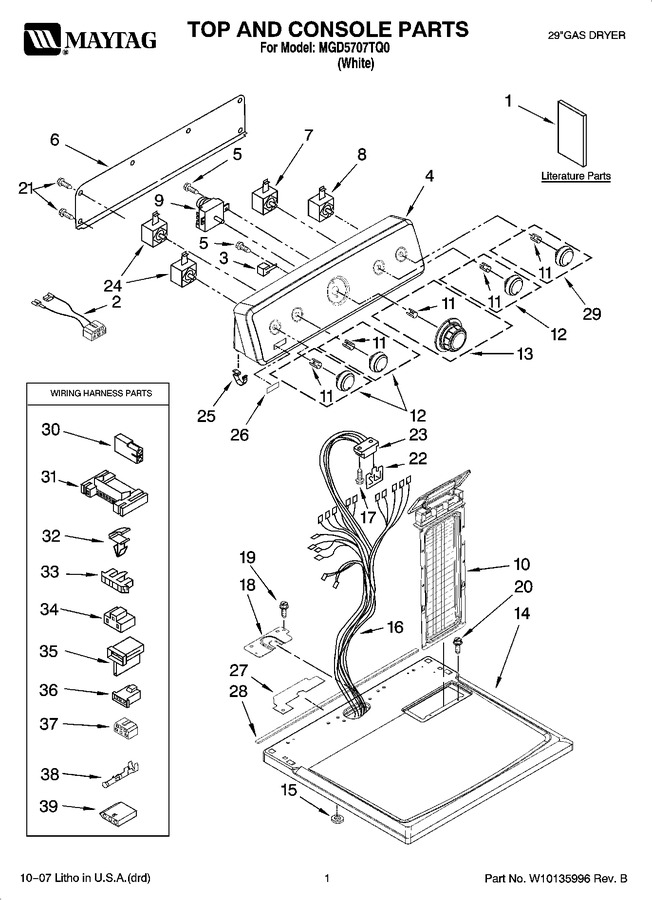

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089177		Sheet, Cycle Feature		Appelez-nous	-
1	W10124167		Wiring Diagram		Appelez-nous	-
1	W10088775		Use & Care Guide		Appelez-nous	-
2	W10124166		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	W10086730		Console & Shell Assembly (includes Items 25 & 26)		Appelez-nous	-
5	WP90767		Screw, 8-18 X 5/8   (Replaces: 8533971)			Immediately	$ 7.82
6	W10112576		Panel, Rear Console				$ 61.99
7	8530169		Switch, Temperature				$ 140.06
8	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
9	WP8566184		Timer Assembly 60 Hz.   (Replaces: 8566184)			Immediately	$ 277.09
10	W11778253		Screen, Lint (white)   (Replaces: 8565972)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	W10112582		Knob, Control (3)				$ 87.97
13	W10112584		Knob, Timer				$ 133.22
14	W10112599		Top				$ 148.65
15	237446		Washer (top/chute)		Appelez-nous	-
16	W10120796		Harness, Wiring		Appelez-nous	-
17	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.06
18	8565981		Bracket, Harness		Appelez-nous	-
19	WP33001882		Screw, 8-18 X 3/4   (Replaces: 337686)				$ 79.72
20	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
21	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
22	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
23	3391885		Connector, Edge				$ 86.40
24	WP3405156		Switch Rotary (twist Mount)   (Replaces: 3405156)				$ 145.51
25	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
26	W10112589		Badge Assembly		Appelez-nous	-
27	W10118608		Seal-harness		Appelez-nous	-
28	W10112267		Seal-foam Control Bracket				$ 92.89
29	W10112586		Knob, Push-to-start		Appelez-nous	-
30	717252		Plug, 2-way		Appelez-nous	-
31	3395683		Connector, Motor			Immediately	$ 51.86
32	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
33	3397269		Connector-timer				$ 25.55
34	3401144		Connector (pts) Relay				$ 12.20
35	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
36	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
37	3347243		Connector 6-circuit		Appelez-nous	-
38	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
39	3936144		Connector				$ 20.21
