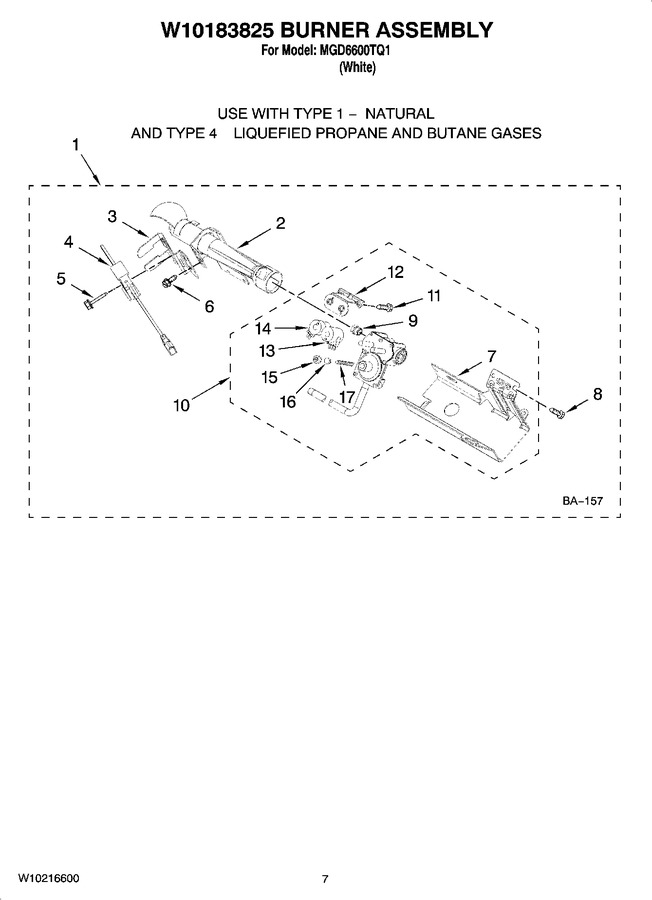

04 - W10183825 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10183825		Burner Assembly 60 Hz. (type 1) (white Rodgers)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 7/8)   (Replaces: 3393909)				$ 7.88
6	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
7	W10183823		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.55
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 36.59
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 36.59
9	WP234826		Orifice, Burner (type 1)   (Replaces: 234826)				$ 39.27
10	8281924		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. 7).		Appelez-nous	-
11	694421		Screw, 8-32 X 1/2 (2)		Appelez-nous	-
12	8182790		Bracket, Coil		Appelez-nous	-
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz.(split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 36.30
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
NI	49586		Connector, Hose   (Replaces: W10044604)				$ 15.48
NI	49572A		Conversion Kit (type (1) To Type (4) Lpg).   (Replaces: 49572)			Immediately	$ 36.19
NI	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
NI	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
NI	W10071550		Dry Rack		Appelez-nous	-
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
NI	8544761A		Tube Extension   (Replaces: 8544761)				$ 26.61
NI	49611		Side Venting				$ 136.05
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	W10044609A		Bag Assembly (contains The Following)   (Replaces: W10044609)			Immediately	$ 22.46
NI	WP76314		Hose, Inlet 6 Ft. Hose With Elbow   (Replaces: 76314)				$ 45.26
NI	W10044603		Hose, Inlet 1 Ft. Hose				$ 24.90
NI	WP16123		Washer   (Replaces: W10194033)				$ 8.16
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
