SELECT A DIAGRAM

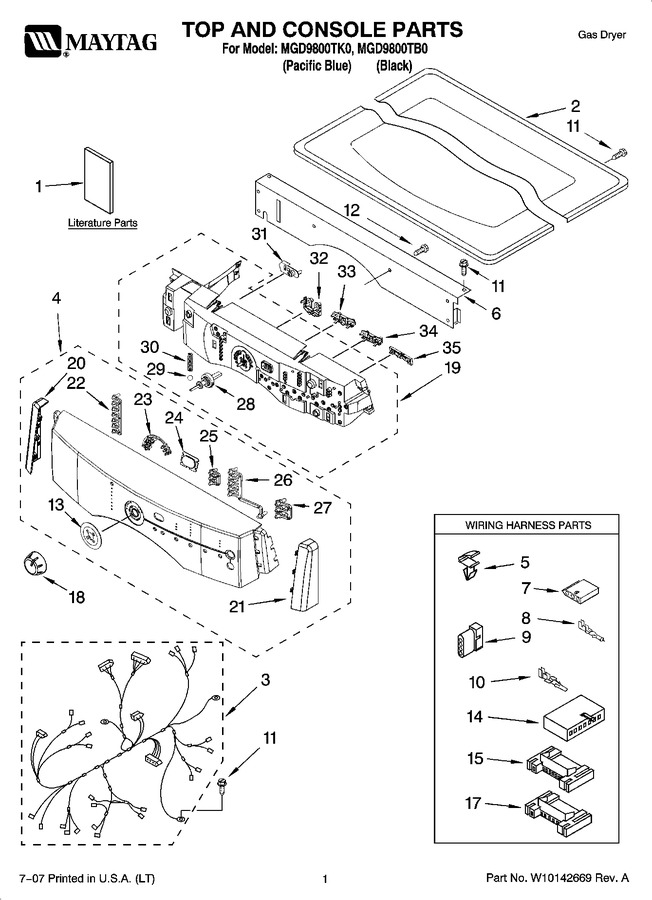

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10139630		Use & Care Guide		Appelez-nous	-
1	W10049500		Tech Sheet		Appelez-nous	-
1	W10099080		Guide, Quick Start		Appelez-nous	-
2	8579997		Top (black)		Appelez-nous	-
2	W10133996		Top (pacific Blue)		Appelez-nous	-
3	8299950		Harness, Main		Appelez-nous	-
4	W10133979		Panel, Console (includes Bezel, Light Indicators & Endcaps) (black)		Appelez-nous	-
4	W10133981		Panel, Console (includes Bezel, Light Indicators & Endcaps) (pacific Blue)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WP488787		Screw, 8-18 X 1/2   (Replaces: 488886)				$ 11.26
13	8542690		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector, Motor			Immediately	$ 54.45
17	2203186		Connector, 5-circuit				$ 13.18
18	W10133964		Knob, Assembly		Appelez-nous	-
19	8558455		User Interface (includes Illus. 28, 29 & 30)				$ 315.33
20	8579987		End Cap (l.h.) (black)		Appelez-nous	-
20	W10133965		End Cap (l.h.) (pacific Blue)		Appelez-nous	-
21	8579986		End Cap (r.h.) (black)		Appelez-nous	-
21	W10133966		End Cap (r.h.) (pacific Blue)		Appelez-nous	-
22	8542682		Light Indicator (status)		Appelez-nous	-
23	8542683		Light Indicator (cycle)		Appelez-nous	-
24	8542691		Lens, Display		Appelez-nous	-
25	8542684		Light Indicator (dryness Level)		Appelez-nous	-
26	8542685		Light Indicator (temperature)		Appelez-nous	-
27	8542686		Light Indicator (xcare/eoc)		Appelez-nous	-
28	8542717		Shaft, Cycle Selector				$ 44.40
29	8542716		Bearing, Knob				$ 37.96
30	8542715		Spring, Knob				$ 43.73
31	W10133970		Pushbutton, (control)				$ 65.74
32	W10133967		Pushbutton, (drytime)				$ 43.08
33	W10133968		Pushbutton, (dryness/temp)				$ 43.08
34	W10133969		Pushbutton, (xcare/eoc)		Appelez-nous	-
35	W10133971		Pushbutton (start/cancel)		Appelez-nous	-
