SELECT A DIAGRAM

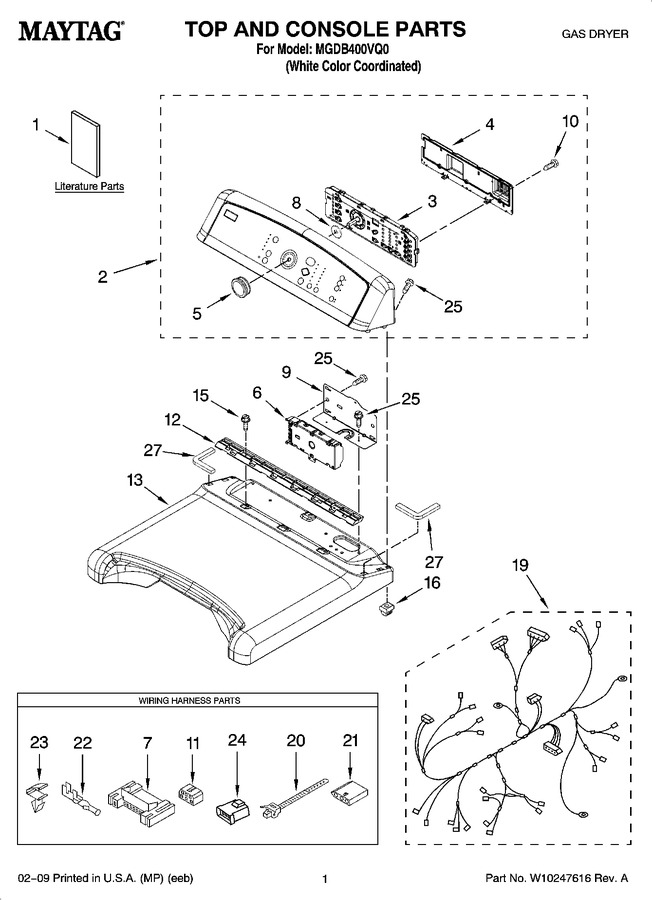

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8557891 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10200966 | Perf. Tips Sheet |
|
- | |||||
| 1 | W10156734 | Tech, Sheet |
|
- | |||||
| 1 | W10201175 | Guide, Use & Care |
|
- | |||||
| 1 | W10201170 | Guide, Quick Start |
|
- | |||||
| 2 | W10110298 | Console Assembly |
|
$ 301.65 | |||||
| 3 | W10222206 | Assembly, User Interface |
|
- | |||||
| 4 | W10051124 | Cover, Ui-assembly |
|
$ 263.67 | |||||
| 5 | WPW10051126 | Knob Assembly (Replaces: W10051126) |
|
$ 53.77 | |||||
| 6 | W10111621 | Control Electronic |
|
$ 337.91 | |||||
| 7 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 8 | 8572039 | Seal-ui |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 11 | 3347243 | Connector, 6-circuit Assembly |
|
- | |||||
| 12 | W10110295 | Bracket, Console |
|
- | |||||
| 13 | W10111848 | Top User Interface |
|
- | |||||
| 15 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 16 | W10112673 | Clip, Console |
|
$ 9.75 | |||||
| 19 | W10111056 | Harness, Wiring Main |
|
- | |||||
| 20 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 21 | 3936144 | Connector |
|
$ 21.22 | |||||
| 22 | 94613 | Terminal |
|
- | |||||
| 23 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 24 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 25 | W10131402 | Screw (3) |
|
- | |||||
| 27 | W10219694 | Seal, Top(rh) |
|
- | |||||
| 27 | W10219695 | Seal, Top(lh) |
|
- |
