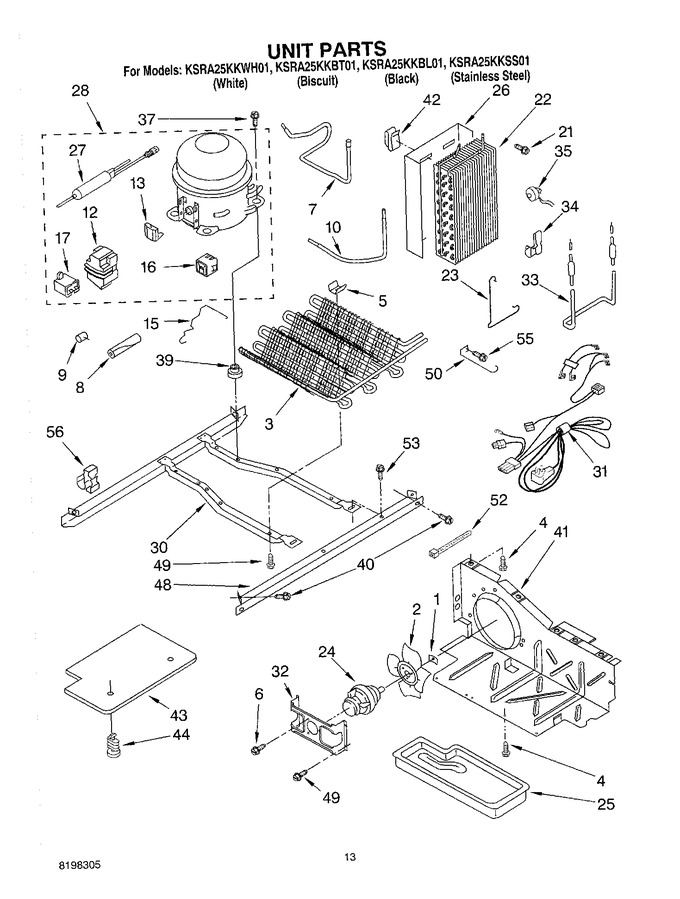

09 - Unit Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2205765		Tube Suction				$ 36.04
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
10	2211760		Tube, Condenser To Heat Loop		Appelez-nous	-
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 95.29
13	WP4387835		Overload ((service, Includes Relay))   (Replaces: 4387835)				$ 177.09
16	2220475		Start-device 15 2223314 Clip, Retaining Combination (start Relay And Overload For Production Compressor Only)		Appelez-nous	-
17	WPW10662129		Capacitor ((production)   (Replaces: 999532)			Immediately	$ 58.86
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 185.89
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 381.49
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2188537)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10309994		Compressor (includes Items 12, 13, 16, 17, & 27) (also Order 876765 Tube Kit)   (Replaces: 2212192)			Immediately	$ 643.55
30	2304904		Unit Mounting Frame   (Replaces: 2157397)		Appelez-nous	-
31	4389202		Unit, Harness   (Replaces: 2187507)				$ 322.37
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	W11661574		Screw   (Replaces: 489473)				$ 14.29
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
39	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2206281		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2305374		Unit Mounting Rail   (Replaces: 1127911)				$ 84.67
49	W11544659		Screw   (Replaces: 8281232)				$ 14.35
50	1110663		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
55	WP489478		Screw   (Replaces: 489478)				$ 8.18
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978026		Valve, Access (5/16``)			Immediately	$ 134.49
56	2208280		Clip, Wire & Tube		Appelez-nous	-
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
56	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
56	876764		Valve, Access(3/16``)			Immediately	$ 95.92
56	978030		Valve, Access (3/4``)				$ 137.25
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	350956		Enamel, Almond (12 Oz. Spray Can)				$ 54.01
	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	2006783		Cleaner, Stainless Steel		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	W11729596		Kims9   (Replaces: 2155468)			Immediately	$ 150.98
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	N/A		Torx Screw Wrench		Appelez-nous	-
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
