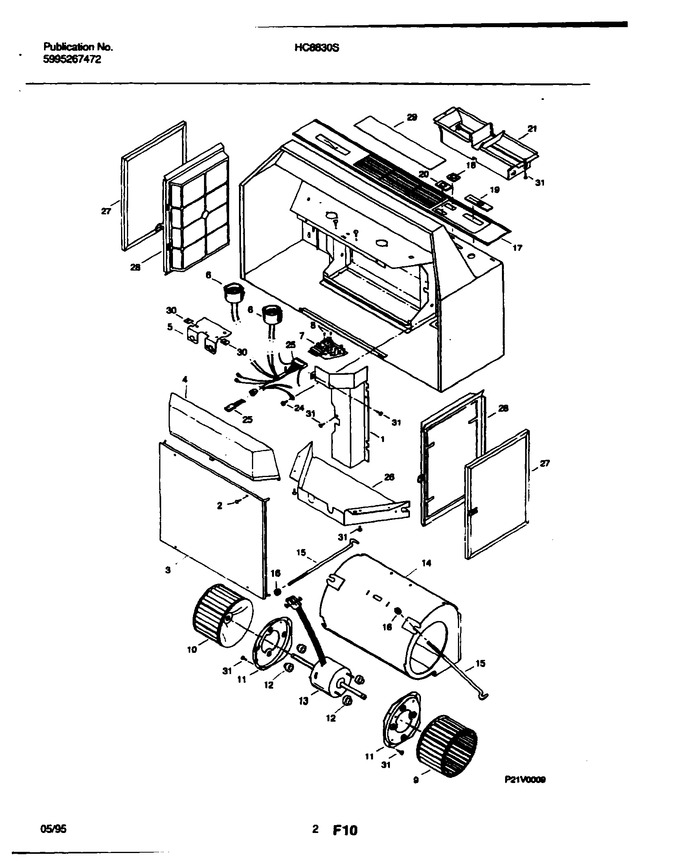

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307763		Cover		Appelez-nous	-
3	5303307764		Bottom Cover-stainless		Appelez-nous	-
4	5303307765		Lens		Appelez-nous	-
5	5303307766		Thermostat		Appelez-nous	-
6	5303307767		Holder-bulb (2)		Appelez-nous	-
7	5303307770		Control Board Assy				$ 245.75
9	5303282000		Blower Wheel-clockwise		Appelez-nous	-
10	5303281992		Blower Wheel-counterclockwise		Appelez-nous	-
11	5303281993		Retaining Ring-motor (2 Req)		Appelez-nous	-
12	5303307771		Mounting		Appelez-nous	-
13	5303307772		Motor		Appelez-nous	-
14	5303281999		Housing-blower Scroll		Appelez-nous	-
15	5303281998		Rod-blower Mounting (2 Req)		Appelez-nous	-
16	5303281997		Nut-blower Mounting Rod (2 Req)		Appelez-nous	-
17	5303307773		Control Panel (30`` Wide Hood) (includes Item No. 29)		Appelez-nous	-
17	5304404296		Control Panel (36`` Wide Hood) (includes Item No. 29)		Appelez-nous	-
18	5303307774		Knob,blower Black		Appelez-nous	-
19	5303307775		Knob,speed Control Black		Appelez-nous	-
20	5303307776		Knob,light Switch				$ 57.65
21	5303281951		Damper Assy Incl Flap & Bushing				$ 118.76
22	5303281952		Flap-damper		Appelez-nous	-
23	5303281953		Bushing-damper		Appelez-nous	-
25	5303307777		Receptacle-motor		Appelez-nous	-
26	5303307778		Cover, Light Socket		Appelez-nous	-
27	5303307779		Filter				$ 132.72
28	5303307780		Filter				$ 142.38
29	5303307782		Cover,louver White		Appelez-nous	-
29	5303307781		Cover,louver Black		Appelez-nous	-
30	5303281958		Nut ``u`` Type (2) 31		Appelez-nous	-
