SELECT A DIAGRAM

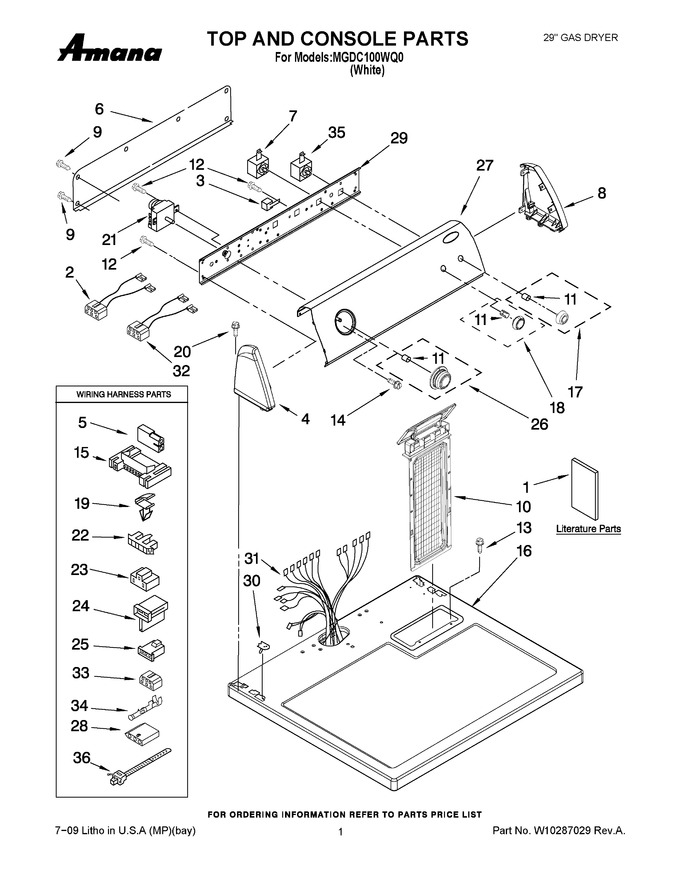

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089185		Sheet, Cycle Feature		Appelez-nous	-
1	W10150630		Instructions, Installation		Appelez-nous	-
1	W10088780		Use & Care Guide		Appelez-nous	-
1	8576796		Wiring Diagram		Appelez-nous	-
2	W10203571		Jumper, Auxillary Switch		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	3405152		Switch, Wrinkle Gaurd				$ 131.07
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	W11778253		Screen, Lint (white)   (Replaces: 8558463)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
15	3395683		Connector, Motor			Immediately	$ 51.86
16	8557930		Top		Appelez-nous	-
17	WPW10180220		Knob, Push-to-start   (Replaces: W10180220)				$ 55.92
18	WPW10180218		Knob, Control   (Replaces: W10180218)				$ 43.64
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3977678		Timer Assembly (60 Hz.)   (Replaces: 3977678)				$ 316.70
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.20
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	WPW10180219		Timer Knob Assembly   (Replaces: W10180219)				$ 60.32
27	W10270639		Panel, Control		Appelez-nous	-
28	3936144		Connector				$ 20.21
29	8271418		Bracket, Control				$ 57.15
30	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.39
31	8299876		Harness, Wiring		Appelez-nous	-
32	3401695		Jumper, Buzzer (on/off)		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
35	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
36	3391249		Cable Tie		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
