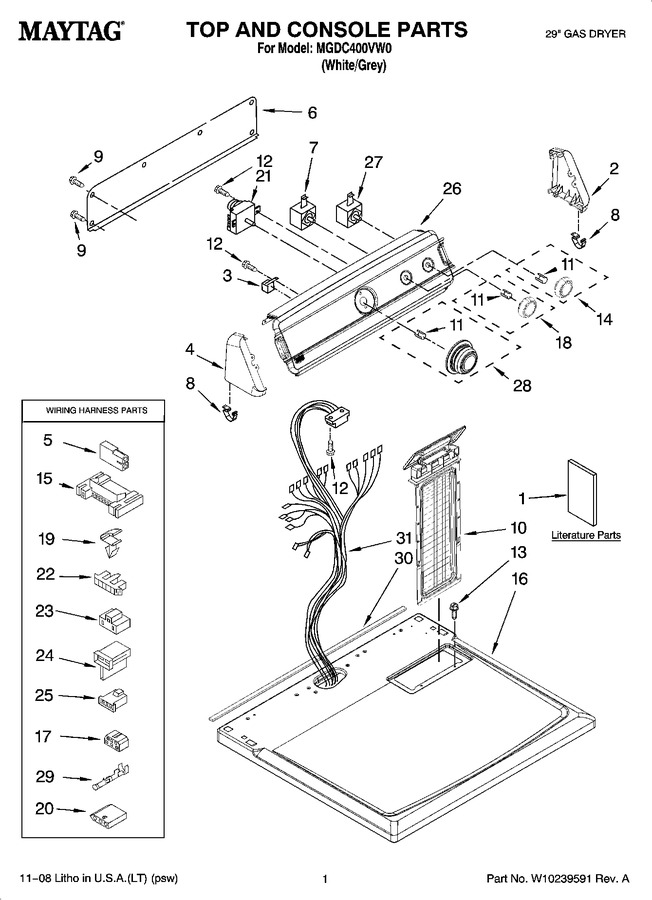

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10150630 | Installation Instruction |
|
- | |||||
| 1 | W10088780 | Use & Care Guide |
|
- | |||||
| 1 | 8528189 | Wiring Diagram |
|
- | |||||
| 1 | W10089179 | Sheet, Cycle Feature |
|
- | |||||
| 2 | WPW10193821 | Endcap (r.h.) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | WPW10193824 | Endcap (l.h.) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 7 | 3405152 | Switch, Wrinkle Gaurd |
|
$ 131.07 | |||||
| 8 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WPW10180220 | Knob, Push-to-start (Replaces: W10180220) |
|
$ 58.72 | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | WPW10225059 | Top & Seal Assembly (Replaces: W10225059) |
|
$ 250.69 | |||||
| 17 | 3347243 | Connector 6-circuit |
|
- | |||||
| 18 | WPW10180218 | Knob, Control (1) (Replaces: W10180218) |
|
$ 45.82 | |||||
| 19 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 20 | 3936144 | Connector |
|
$ 21.22 | |||||
| 21 | WP3977678 | Timer Assembly (60 Hz.) (Replaces: 3977678) |
|
$ 332.54 | |||||
| 22 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 23 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 24 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 26 | W10086736 | Console Assembly (includes. Illus. 8 ) |
|
$ 217.89 | |||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 28 | WPW10180219 | Timer Knob Assembly (Replaces: W10180219) |
|
$ 63.34 | |||||
| 29 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 30 | W10224672 | Foam Seal Console Bracket |
|
- | |||||
| 31 | W10205241 | Harness, Wiring |
|
- |
