SELECT A DIAGRAM

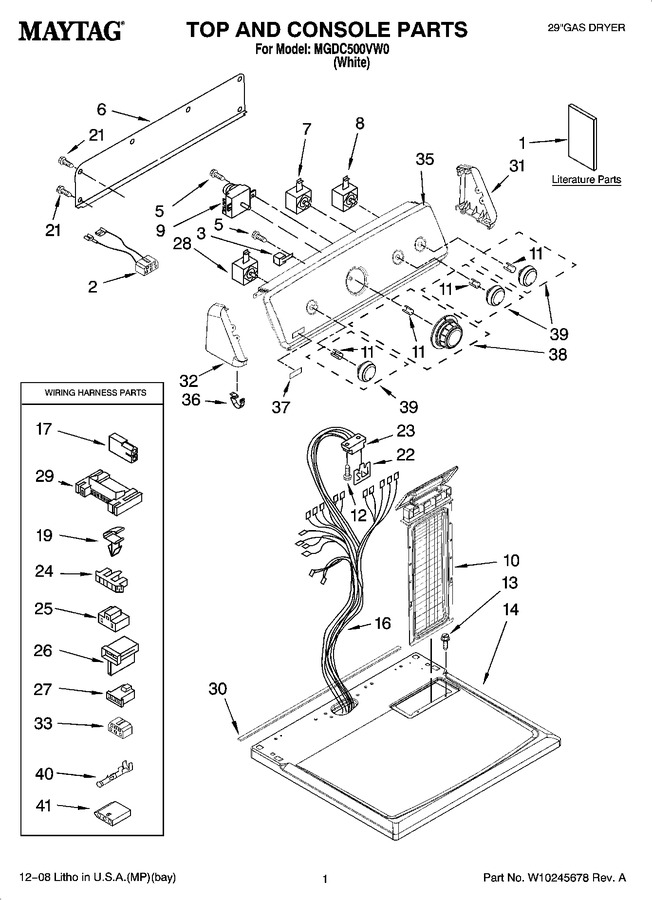

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10088780 | Use & Care Guide |
|
- | |||||
| 1 | W10118081 | Wiring Diagram |
|
- | |||||
| 1 | W10150630 | Instructions, Installation |
|
- | |||||
| 1 | W10089180 | Sheet, Cycle Feature |
|
- | |||||
| 2 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 5 | WP90767 | Screw, 8-18 X 5/8 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 6 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 7 | 8530169 | Switch, Temperature |
|
$ 147.06 | |||||
| 8 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 9 | WP8566184 | Timer Assembly 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WPW10225059 | Top (includes Illus. 30) (Replaces: W10225059) |
|
$ 250.69 | |||||
| 16 | W10111000 | Harness, Wiring |
|
- | |||||
| 17 | 717252 | Plug, 2-way |
|
- | |||||
| 19 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 21 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 23 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 24 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 25 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 26 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 27 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 28 | WP3405156 | Switch, Wrinkle Guard (Replaces: 3405156) |
|
$ 152.79 | |||||
| 29 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 30 | W10224672 | Foam Seal, |
|
- | |||||
| 31 | WPW10193821 | Endcap (rh) (includes Illus. 36) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 32 | WPW10193824 | Endcap (lh) (includes Illus. 36) Console Bracket (Replaces: W10193824) |
|
$ 74.39 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 35 | W10086737 | Control Panel (includes Illus. 37) |
|
- | |||||
| 36 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 37 | W10101390 | Badge, Assembly |
|
- | |||||
| 38 | WPW10180219 | Timer Knob Assembly (Replaces: W10180219) |
|
$ 63.34 | |||||
| 39 | WPW10180218 | Knob, Control (3) (Replaces: W10180218) |
|
$ 45.82 | |||||
| 40 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 41 | 3936144 | Connector |
|
$ 21.22 |
