01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)

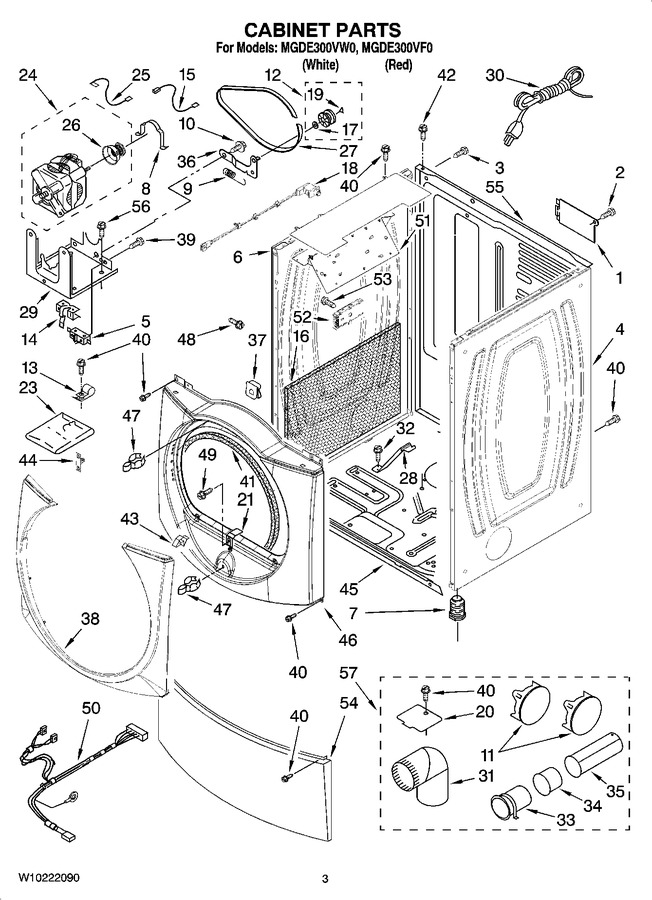

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	W11233548		Panel, Side (r.h.) (white)   (Replaces: W10192446)				$ 261.33
4	W10193957		Panel, Side (r.h.) (magna Red Gloss)				$ 75.88
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	W11233548		Panel, Side (l.h.) (white)   (Replaces: W10192435)				$ 261.33
6	W10193954		Panel, Side (l.h.) (magna Red Gloss)		Appelez-nous	-
7	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
7	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
9	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
10	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
11	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
11	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.65
12	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
13	3978776		Bracket, Gas Pipe		Appelez-nous	-
14	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
15	W10167612		Wire, Belt Switch				$ 13.42
16	W10128772		Sound Panel		Appelez-nous	-
17	WPW10121334		Washer, Flat Plastic   (Replaces: W10121334)			Immediately	$ 7.55
18	W10128087		Assembly, Door Switch				$ 95.53
19	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
20	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
21	8529053		Ramp, Door				$ 51.37
23	8541503		Kit, Stack Assembly			Immediately	$ 43.18
24	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
25	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
26	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
27	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
28	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
29	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
30	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
31	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
32	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
33	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
34	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
35	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
36	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
37	62825		Clip, S-type (3)				$ 8.11
38	W10190563		Trim-ring Assembly (includes: Item 48) (metalic Red)		Appelez-nous	-
38	W10164746		Trim-ring Assembly (includes Item. 48) (white)		Appelez-nous	-
39	WP98129		Screw, 6-20 X 1-1/16   (Replaces: 98129)				$ 8.18
40	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W11808444		Screw, 10-16 X 1/2   (Replaces: 98139)		Appelez-nous	-
43	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
44	WPW10129065		Trim-clip Metal   (Replaces: W10129065)			Immediately	$ 12.24
45	8519207		Base, Cabinet		Appelez-nous	-
46	W10153275		Front Panel (includes Illus. 44) (white)		Appelez-nous	-
46	W10193967		Front Panel (includes Illus. 44) (magna Red)		Appelez-nous	-
47	279570		Strike, Door (2)   (Replaces: 696144)			Immediately	$ 8.89
48	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
49	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	W10181464		Harness, Digital Interface		Appelez-nous	-
51	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
52	W10200473		Control Board		Appelez-nous	-
53	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
54	W10116271		Toe, Panel		Appelez-nous	-
55	W10180481		Panel, Rear		Appelez-nous	-
56	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
57	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
57	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
