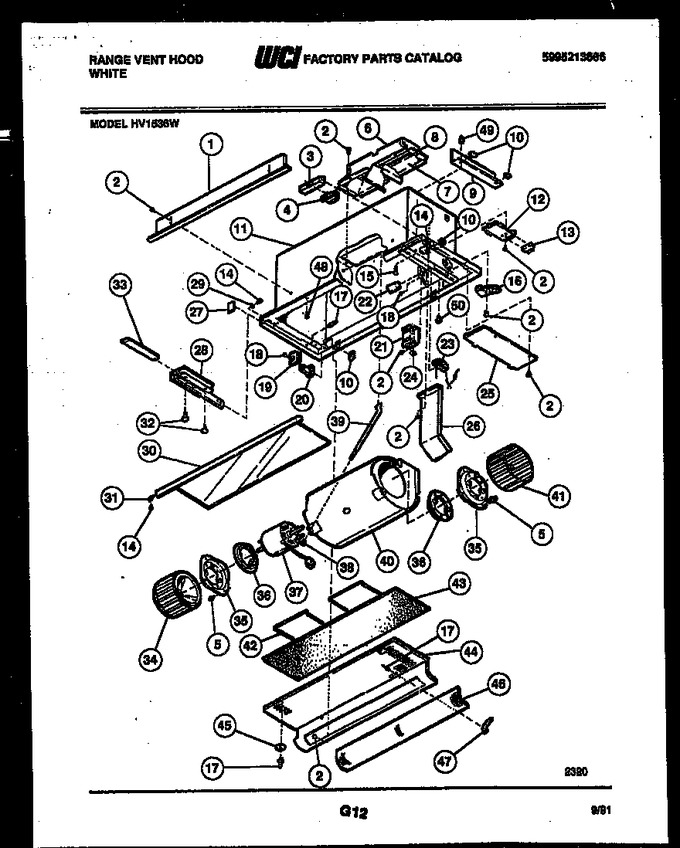

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281942 | Trim-front White |
|
- | |||||
| 2 | 5303281944 | Screw 8-18x3/8 (14 Req) |
|
- | |||||
| 3 | 5303281946 | Trim-control |
|
- | |||||
| 4 | 5303281948 | Knob-control |
|
- | |||||
| 5 | 5303281950 | Screw 8-18 X 3/8 (8 Req) |
|
- | |||||
| 6 | 5303281951 | Damper Assy Incl Flap & Bushing |
|
$ 118.76 | |||||
| 7 | 5303281952 | Flap-damper |
|
- | |||||
| 8 | 5303281953 | Bushing-damper |
|
- | |||||
| 9 | 5303281956 | Rh Mounting Brkt-includes Nuts |
|
- | |||||
| 10 | 5303281958 | No. 8 Metal Nut U Type (11 Req) |
|
- | |||||
| 11 | 5303282070 | Canopy-white |
|
- | |||||
| 12 | 5303281961 | Control Board-variable Speed Slide |
|
- | |||||
| 13 | 5303281962 | Harness-control |
|
- | |||||
| 14 | 5303281963 | Screw 8-32 X 3/16 (5 Req) |
|
- | |||||
| 15 | 5303281964 | Screw 8-18 X 2 (4 Req) |
|
- | |||||
| 16 | 5303281966 | Switch Assy-blower-light-heat |
|
- | |||||
| 17 | 5303281968 | Rivet (16 Req) |
|
- | |||||
| 18 | 5303281969 | Screw 6-32 X 3/8 (4 Req) |
|
- | |||||
| 19 | 5303281970 | Brkt-lampholder (2 Req) |
|
- | |||||
| 20 | 5303281971 | Lampholder (2 Req) |
|
- | |||||
| 21 | 5303281972 | Ballast |
|
- | |||||
| 22 | 5303281973 | Starter Fs-2 |
|
- | |||||
| 23 | 5303281974 | Harness-light |
|
- | |||||
| 24 | 08013831 | Bushing-strain Relief |
|
- | |||||
| 25 | 5303281976 | Cover-access |
|
- | |||||
| 26 | 5303281977 | Cover-wire Box |
|
- | |||||
| 27 | 5303281978 | Stop-drawer (2 Req) |
|
- | |||||
| 28 | 5303281981 | Lh Drawer Brkt Assy-incl Screws & Clamp |
|
- | |||||
| 29 | 5303281983 | Washer (2 Req) |
|
- | |||||
| 30 | 5303282072 | Drawer Assy-incl Screw & End Cap |
|
- | |||||
| 31 | 5303281988 | Cap-drawer End |
|
- | |||||
| 32 | 5303281990 | Thumb Screw (4 Req) |
|
- | |||||
| 33 | 5303281991 | Clamp-drawer |
|
- | |||||
| 34 | 5303281992 | Blower Wheel-counterclockwise |
|
- | |||||
| 35 | 5303281993 | Retaining Ring-motor (2 Req) |
|
- | |||||
| 36 | 5303281995 | Rubber Mount-motor (2 Req) |
|
- | |||||
| 37 | 5303281996 | Motor |
|
- | |||||
| 38 | 5303281997 | Nut-blower Mounting Rod (2 Req) |
|
- | |||||
| 39 | 5303281998 | Rod-blower Mounting (2 Req) |
|
- | |||||
| 40 | 5303281999 | Housing-blower Scroll |
|
- | |||||
| 41 | 5303282000 | Blower Wheel-clockwise |
|
- | |||||
| 42 | 5303282001 | Spring-filter (2 Req) |
|
- | |||||
| 43 | 5303282002 | Filter Foam |
|
- | |||||
| 44 | 5303282006 | Panel-filter |
|
- | |||||
| 45 | 5303282007 | Clip-filter (2 Req) |
|
- | |||||
| 46 | 5303282009 | Lens-light |
|
- | |||||
| 47 | 5303282010 | Clip-lens (2 Req) |
|
- | |||||
| 48 | 5303282011 | Screw 8-18 X 1/2 (2 Req) |
|
- | |||||
| 49 | 5303282014 | Cap-plastic (4 Req) |
|
- | |||||
| 50 | 5303282015 | Screw 10-32 X 1/2 (2 Req) |
|
- | |||||
| *46645 | 5303282016 | Wire Assy |
|
- | |||||
| 15A | 5303281965 | Screw 8-18 X 1 (4 Req) |
|
- | |||||
| 28A | 5303281982 | Rh Drawer Brkt Assy-incl Screws & Clamps |
|
- | |||||
| 9A | 5303281957 | Lh Mounting Brkt-includes Nuts |
|
- |
