01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

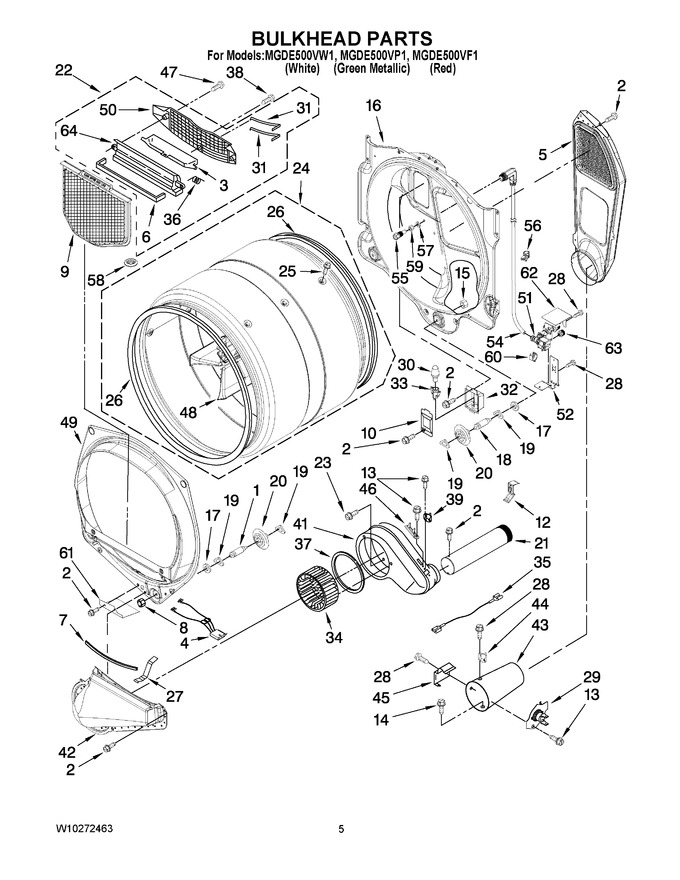

04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 213.91 | ||||
| 4 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 159.56 | ||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10120998 | Lint, Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 14 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 16 | W10133857 | Bulkhead, Rear |
|
$ 151.95 | |||||
| 17 | W11236646 | Washer-support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 18 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 19 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 20 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 21 | 279936 | Exhaust Pipe (Replaces: 8563745) |
|
$ 154.18 | |||||
| 22 | W10253353 | Outlet Grill Housing Assembly (includes 3,6,9,31,36,64) |
|
- | |||||
| 23 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 24 | W10545924 | Complete Drum Assembly (Replaces: W10181466) |
|
$ 456.81 | |||||
| 25 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 26 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 27 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 8.83 | |||||
| 28 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 29 | WP8573713 | Thermal Cut-off (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 30 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 31 | WP3387223 | Electrode (sensor) (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 32 | 8578825 | Bracket,drum Light |
|
$ 21.92 | |||||
| 33 | W11222979 | Socket Assembly (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 34 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 35 | 3401710 | Jumper-tco Hi-limit |
|
- | |||||
| 36 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 37 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 38 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 39 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 41 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 42 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 43 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 44 | WP3391912 | Thermostat Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 45 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 46 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 47 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 48 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 49 | W10252304 | Bulkhead, Front |
|
$ 187.98 | |||||
| 50 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 36.90 | ||||
| 51 | W10044596 | Valve, Water Inlet (includes Illus, 52 & 62 ) |
|
- | |||||
| 52 | W10044597 | Bracket, Valve |
|
- | |||||
| 54 | W10044598 | Hose |
|
- | |||||
| 55 | W10044629 | Nozzle & Screen Assembly |
|
$ 154.07 | |||||
| 56 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 57 | W10044579 | Washer-nozzle |
|
$ 9.22 | |||||
| 58 | W10665050 | Caplug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 59 | W10044628 | Brass Nut |
|
$ 97.27 | |||||
| 60 | W10044599 | Clip, Push-to-connect (Replaces: W10044615) |
|
$ 15.00 | |||||
| 61 | W11257251 | Shield, Blower Housing (includes, Illus. 2 ) (Replaces: W10128629) |
|
$ 72.06 | |||||
| 62 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 125.57 | ||||
| 63 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 64 | W11129408 | Outlet Housing (Replaces: W10153414) |
|
Immediately | $ 53.28 |
