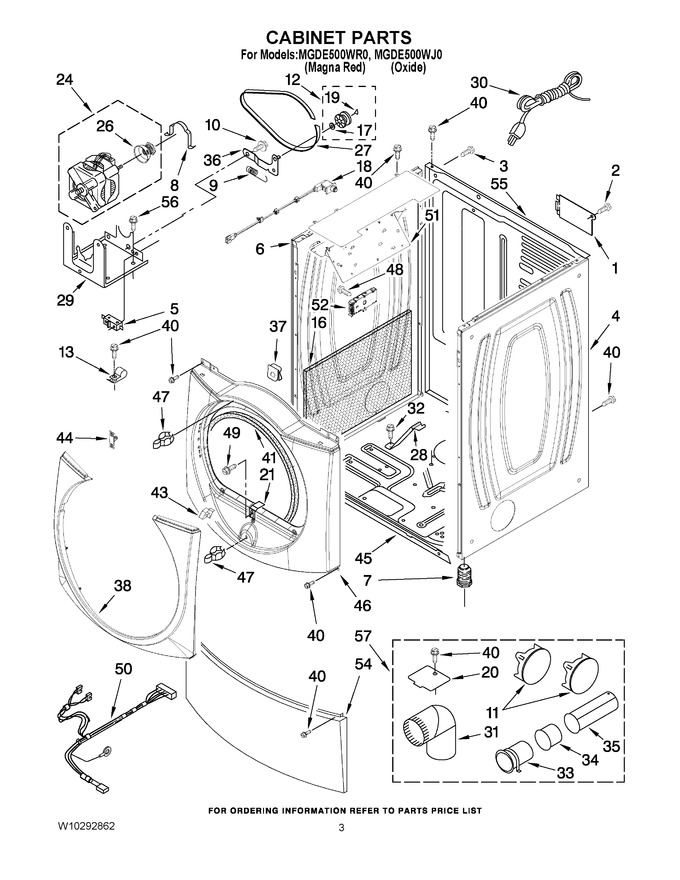

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	W10249769		Panel, Side (r.h.) (red)				$ 121.14
4	W11233548		Panel, Side (r.h.) (oxide)   (Replaces: W10192435)				$ 261.33
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	W10249768		Panel, Side (l.h.) (red)				$ 121.14
6	W10193956		Panel, Side (l.h.) (oxide)				$ 121.60
7	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
9	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
10	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
11	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
11	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
12	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
13	3978776		Bracket, Gas Pipe		Appelez-nous	-
16	W10123956		Sound Panel		Appelez-nous	-
17	WPW10121334		Washer, Flat Plastic   (Replaces: W10121334)			Immediately	$ 7.55
18	W10128087		Assembly, Door Switch				$ 95.53
19	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
20	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
21	8529053		Ramp, Door				$ 51.37
24	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
26	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
27	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
28	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
29	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
30	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
31	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
32	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
33	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
34	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
35	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
36	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
37	62825		Clip, S-type (3)				$ 8.11
38	W10221447		Trim-ring Assembly (includes: Item 44) (oxide)				$ 140.03
38	W10271928		Trim-ring Assembly (includes: Item 44) (red)				$ 122.74
40	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
43	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
44	WPW10129065		Trim-clip Metal   (Replaces: W10129065)			Immediately	$ 12.24
45	W10239098		Base, Cabinet				$ 148.45
46	W10250671		Front Panel (red)		Appelez-nous	-
46	W10164915		Front Panel (oxide)				$ 144.72
47	279570		Strike, Door (2)   (Replaces: 696144)			Immediately	$ 8.89
48	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
49	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	W10242903		Harness, Digital Interface		Appelez-nous	-
51	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
52	W10174746		Control Board				$ 307.29
54	W10250673		Toe Panel (red)		Appelez-nous	-
54	W10246285		Toe Panel (oxide)				$ 101.34
55	W10244142		Panel, Rear		Appelez-nous	-
56	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
57	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
57	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
