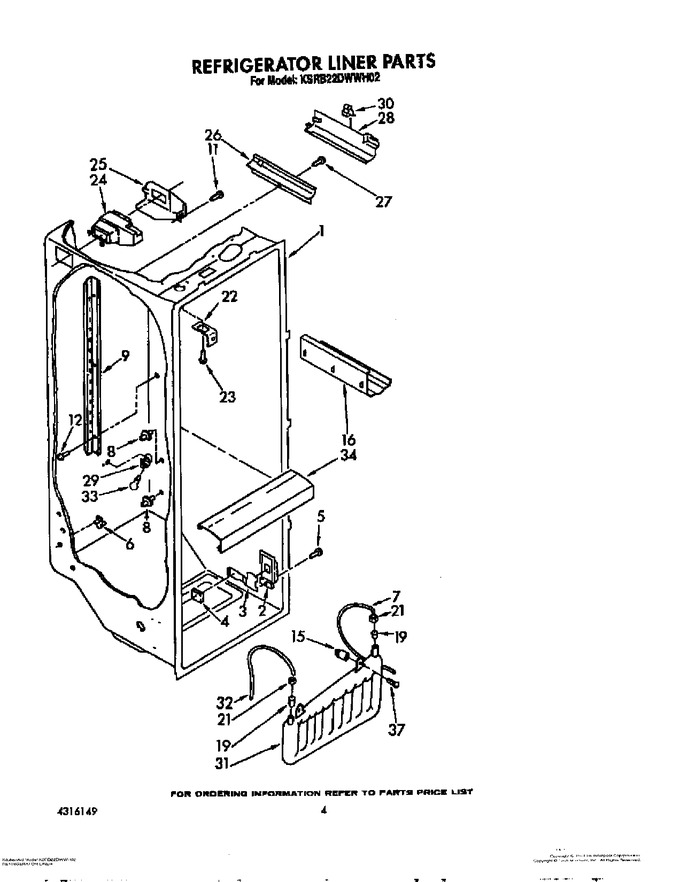

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 985468 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | 984102 | Slide, Meat Pan Control |
|
$ 5.02 | |||||
| 4 | 992358 | Pad, Foam |
|
- | |||||
| 5 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 6 | 1125675 | Stud, Pan Cover |
|
- | |||||
| 7 | W10823511 | Tube, Water (Replaces: 1119096) |
|
Immediately | $ 32.41 | ||||
| 8 | 4388538 | Stud (11) (Replaces: 1110718) |
|
Immediately | $ 31.34 | ||||
| 9 | 1108433 | Ladder, Shelf (2) |
|
- | |||||
| 11 | WP489478 | Screw (2) (Replaces: 489242) |
|
$ 7.75 | |||||
| 12 | WP488729 | Screw, 8 X 1/2 (6) (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 15 | 1115399 | Stud, Spacer (2) |
|
- | |||||
| 16 | 1125913 | Rack, Wine & Egg |
|
- | |||||
| 19 | 1129177 | Insert, Plastic Tube |
|
$ 5.27 | |||||
| 21 | 1129179 | Nut, Compression |
|
- | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 34.38 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.68 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 1121327) |
|
Immediately | $ 99.78 | ||||
| 25 | 2152019 | Air Diffuser Cover (Replaces: 1118430) |
|
$ 86.03 | |||||
| 26 | 1123926 | Cover, Conduit |
|
- | |||||
| 27 | WP488163 | Screw, 8 X 3/4 (Replaces: 488248) |
|
$ 7.54 | |||||
| 28 | 1123921 | Cover, Wiring |
|
- | |||||
| 29 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 110.16 | ||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.42 | |||||
| 31 | WP2256126 | Reservoir (Replaces: 1129170) |
|
$ 168.85 | |||||
| 32 | 1129175 | Tube |
|
- | |||||
| 33 | 316538904 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 22.75 | ||||
| 34 | 1125586 | Light Lens |
|
- | |||||
| 37 | 488280 | Screw (2) |
|
- |
