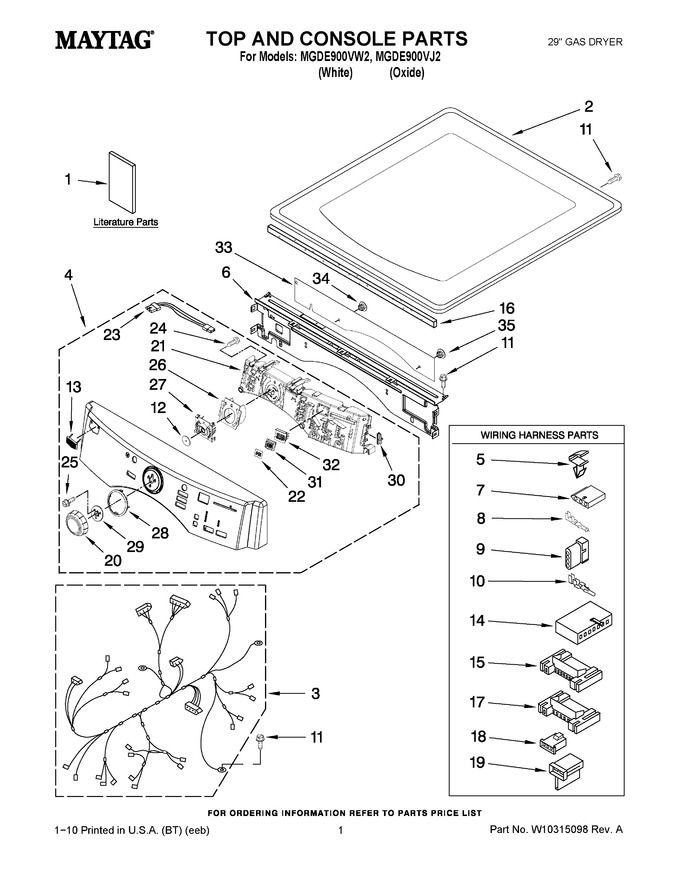

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10255469 | Installation Instructions |
|
- | |||||
| 1 | W10258377 | Tech Sheet |
|
- | |||||
| 1 | W10239302 | Use & Care Guide |
|
- | |||||
| 2 | W10164743 | Top (oxide) |
|
$ 42.44 | |||||
| 2 | 3980634 | Top (white) |
|
- | |||||
| 3 | W10111069 | Harness, Main |
|
$ 273.58 | |||||
| 4 | W10246752 | Console Assembly (white) |
|
$ 383.09 | |||||
| 4 | W10246753 | Console Assembly (oxide) |
|
$ 460.90 | |||||
| 5 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | W10215656 | Bracket, Console (includes Item 16) |
|
$ 72.06 | |||||
| 7 | 353424 | Connector Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | 8572039 | Seal, User Interface |
|
- | |||||
| 13 | W10732500 | Medallion (Replaces: W10177245) |
|
$ 45.43 | |||||
| 14 | 3936150 | Connector, 7-circuit |
|
$ 77.60 | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | W10112267 | Foam-seal Control Bracket |
|
$ 97.53 | |||||
| 17 | 2203186 | Connector, 5-circuit |
|
$ 13.18 | |||||
| 18 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 19 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 20 | W10164576 | Knob |
|
$ 56.77 | |||||
| 21 | WPW10269027 | User-interface (Replaces: W10269027) |
|
$ 222.69 | |||||
| 22 | W10171504 | Foil-display |
|
$ 13.42 | |||||
| 23 | W10242907 | Harness, User Interface |
|
$ 170.35 | |||||
| 24 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 25 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 26 | W10170295 | Frame-light Guide |
|
- | |||||
| 27 | W10170293 | Guide, Light Cylcle Internal |
|
$ 94.31 | |||||
| 28 | W10164567 | Cycle, Light Guide |
|
$ 68.85 | |||||
| 29 | W10172298 | Bushing, Knob |
|
$ 13.40 | |||||
| 30 | W10214555 | Plug, Connector |
|
$ 6.94 | |||||
| 31 | W10164578 | Guide, Light (3-way Digital) |
|
$ 15.96 | |||||
| 32 | W10171502 | Frame-light (guide Display) |
|
$ 16.93 | |||||
| 33 | W10215674 | Shield, Console Bracket |
|
$ 33.47 | |||||
| 34 | W10216201 | Plug-hole,1/4``(2) |
|
- | |||||
| 35 | W10216202 | Plug-hole,5/16``(1) |
|
- |
