SELECT A DIAGRAM

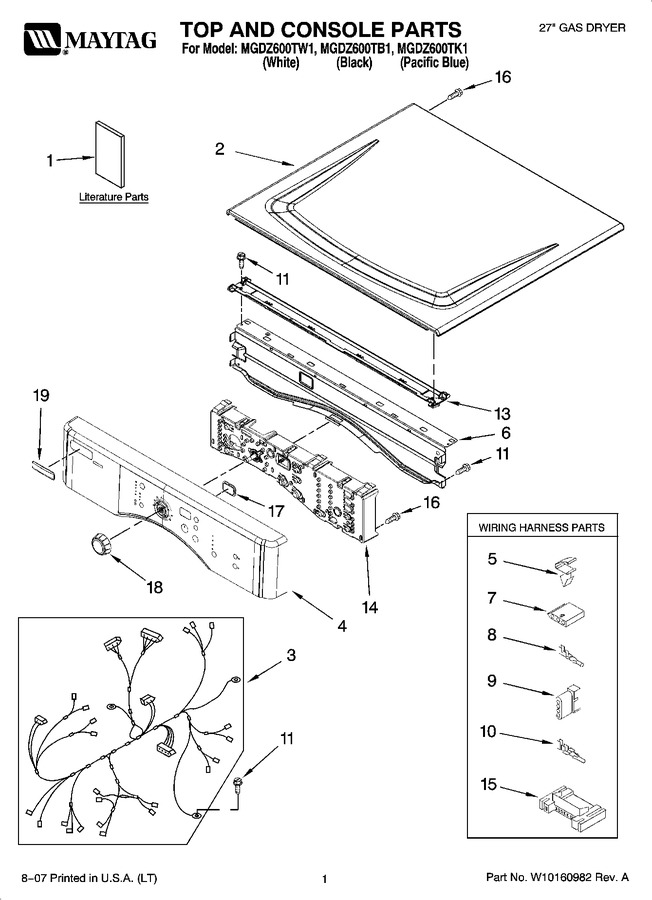

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10112943		Use & Care Guide		Appelez-nous	-
1	W10117403		Guide, Quick Start		Appelez-nous	-
1	W10133923		Tech Sheet		Appelez-nous	-
2	W10140767		Top (pacific Blue)		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: 8563730)				$ 331.99
2	W10129703		Top (black)				$ 122.37
3	W10110973		Harness, Main				$ 230.76
4	W10119034		Panel, Console (includes Illus. 19.) (pacific Blue)		Appelez-nous	-
4	W10117393		Panel, Console (includes Illus. 19.) (black)				$ 184.38
4	W10117389		Panel, Console (includes Illus. 19.) (white)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
13	WPW10266747		Channel, Water   (Replaces: 8574968)				$ 73.96
14	W10117417		Assembly, User Interface				$ 275.17
15	3395683		Connector, Motor			Immediately	$ 54.45
16	3400238		Screw, 2-28 X 1/2				$ 12.03
17	W10117387		Lens, Display		Appelez-nous	-
18	WPW10119050		Knob, Assembly   (Replaces: W10119050)				$ 56.35
19	W10203949		Badge Assembly   (Replaces: W10112569)				$ 72.04

    View Diagram in Separate Window       Print Part List
