SELECT A DIAGRAM

01 - Top And Console Parts

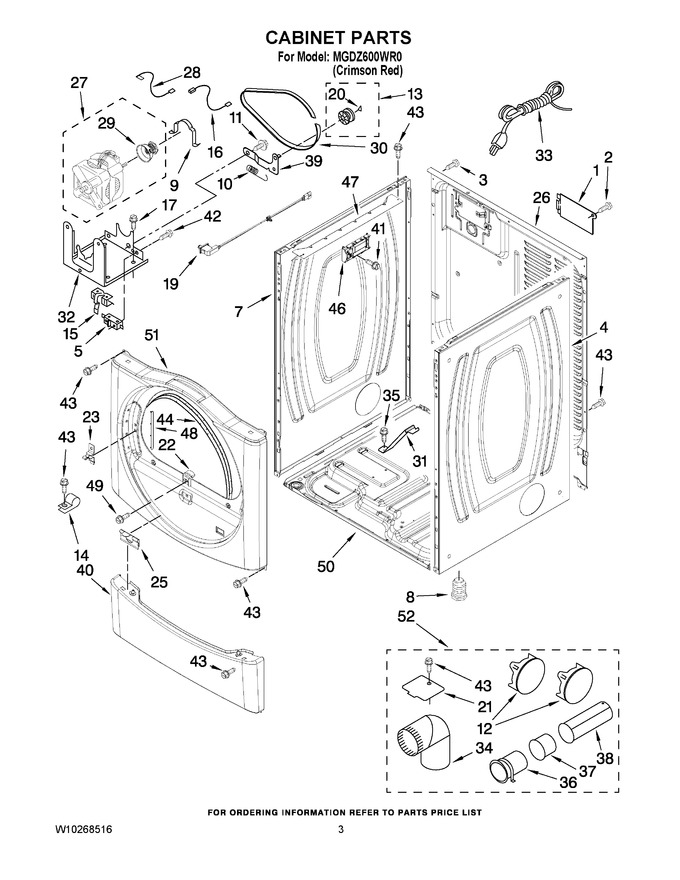

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
4	W10251217		Panel, Side (r.h.)		Appelez-nous	-
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
7	W10251216		Panel, Side (l.h.)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent (black)   (Replaces: 3388309)			Immediately	$ 76.65
12	WPW10404617		Plug, Multivent (pacific Blue)   (Replaces: 8561800)				$ 75.58
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.65
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
16	3394081		Wire, Belt Switch				$ 37.57
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
19	W10128087		Assembly, Door Switch				$ 95.53
20	WPW10121334		Tri-ring   (Replaces: W10121334)			Immediately	$ 7.55
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8565083		Ramp, Door		Appelez-nous	-
23	WP8565122		Strike, Door (1) (stack Assembly)   (Replaces: 8565122)			Immediately	$ 8.65
25	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
26	8565059		Panel, Rear				$ 244.90
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10251209		Toe Panel				$ 66.91
41	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
42	WP98129		Screw, 6-20 X 1-1/16   (Replaces: 98129)				$ 8.18
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
46	W10111606		Control Board				$ 302.46
47	WP8563727		Control Bracket   (Replaces: 8563727)				$ 179.69
48	8565043		Plug, Strip				$ 97.29
49	WP308685		Screw, 8-18 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
51	W10251207		Front Panel (includes Illus. 44 )		Appelez-nous	-
52	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (pacific Blue)   (Replaces: 280102)			Immediately	$ 76.65
52	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
52	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (black)   (Replaces: 279820)			Immediately	$ 76.65

    View Diagram in Separate Window       Print Part List
