SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner

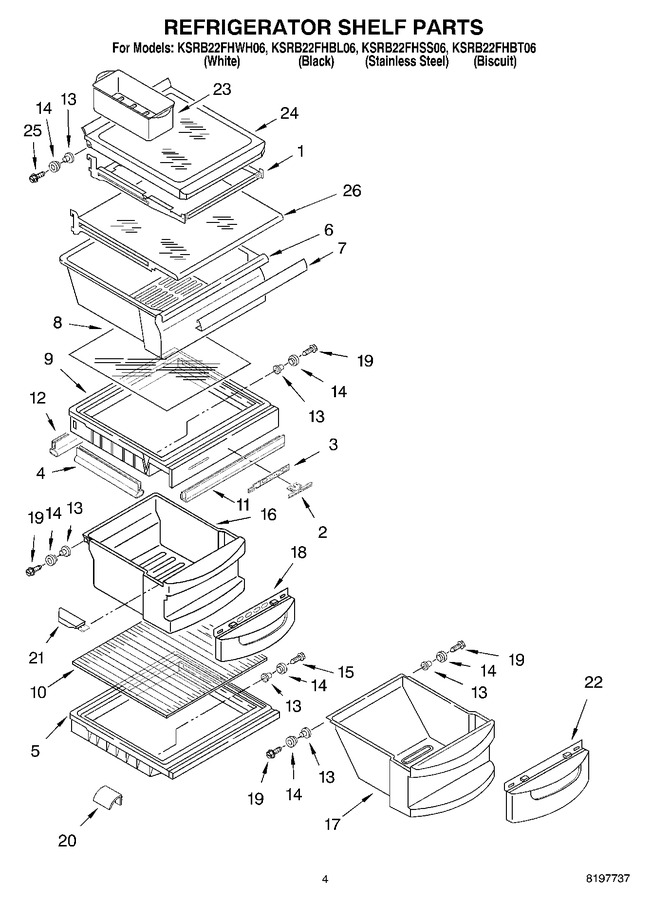

03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195978		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	2174253		Button, Humidity		Appelez-nous	-
3	2174252		Slide, Humidity				$ 15.93
4	2174273		Gasket, Side (2)				$ 41.53
5	WP2161491		Cover, Meat Pan (includes Items 13, 14 & 15)   (Replaces: 2161490)				$ 237.43
6	W11497323		Snack Pan   (Replaces: 2209677)				$ 234.84
7	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 109.65
8	2189526		Glass, Cover		Appelez-nous	-
9	2174250		Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14, & 19)				$ 101.40
10	2174148		Glass, Cover		Appelez-nous	-
11	WP1125528		Gasket, (front)   (Replaces: 2174272)				$ 161.69
12	2174274		Gasket, (rear)				$ 41.02
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
16	WP2179227		Crisper Pan (includes 13, 14, 18, 19 & 21)   (Replaces: 2179227)				$ 224.77
17	2179231		Meat Pan (includes 13, 14, 19, & 22)		Appelez-nous	-
18	2174076		Window, Crisper				$ 80.62
19	WP489261		Screw   (Replaces: 489261)				$ 8.33
20	2176095		Deflector				$ 91.67
21	2174259		Cap, Crisper Pan (right Side)		Appelez-nous	-
21	2174258		Cap, Crisper Pan (left Side)		Appelez-nous	-
22	WP2174362		Window, Meat Pan   (Replaces: 2174362)				$ 179.76
23	W10136387A		Bin, Egg   (Replaces: 2216624)				$ 19.54
24	2174021		Shelf & Roller Assembly		Appelez-nous	-
25	489439		Screw		Appelez-nous	-
26	2206346		Shelf, Snack Pan		Appelez-nous	-
