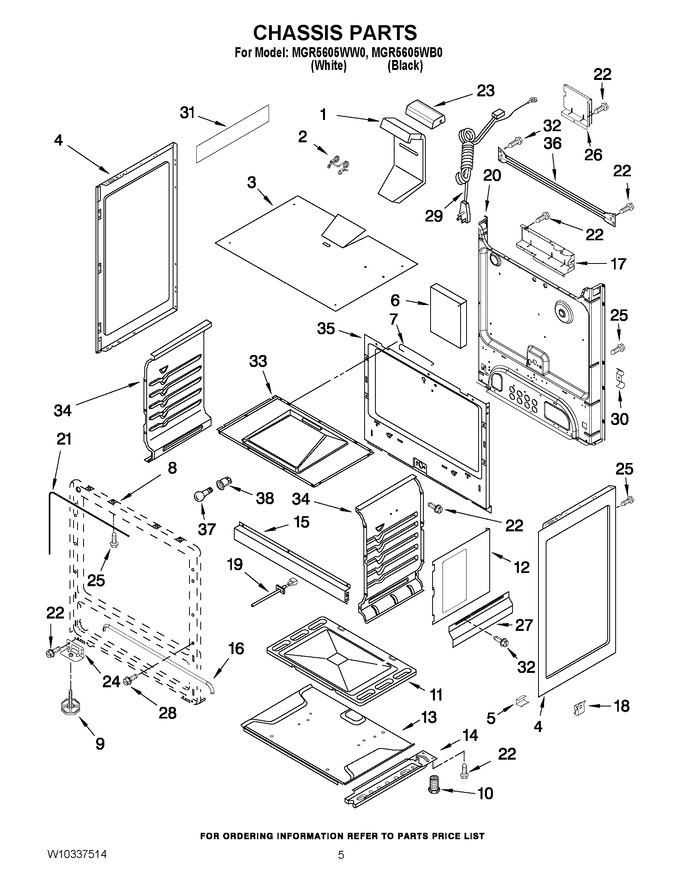

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10116396		Flue Box   (Replaces: 98003799)				$ 93.48
2	98013690		Clip, Flue		Appelez-nous	-
3	W10306785		Shield, Insulation		Appelez-nous	-
4	WP98010043		Panel, Side (black)   (Replaces: 98010043)				$ 186.83
4	WP98010042		Panel, Side (white)   (Replaces: 98010042)				$ 167.87
5	98005502		Clip, Oven Bottom				$ 14.11
6	98006710		Counterweight		Appelez-nous	-
7	98006739		Wire, Brick		Appelez-nous	-
8	W10166434		Frame, Front		Appelez-nous	-
9	WP3196037		Foot, Front   (Replaces: W10153610)				$ 87.12
10	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 8.24
11	WP98004449		Bottom, Oven   (Replaces: 98004449)				$ 274.42
12	W10121634		Baffle, Side		Appelez-nous	-
13	98003847		Baffle, Base				$ 215.85
14	98003830		Rail, Base		Appelez-nous	-
15	98012175		Support, Burner		Appelez-nous	-
16	WP98017162		Gasket, Broil Door   (Replaces: 98017162)				$ 126.96
17	98014105		Cover, Valve		Appelez-nous	-
18	98009179		U-nut				$ 14.03
19	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
20	98015100		Back, Main		Appelez-nous	-
21	WPW10217472		Seal, Oven   (Replaces: W10217472)				$ 139.15
22	W10837731		Screw   (Replaces: 98006633)				$ 8.30
23	98007205		Cap, Insulation		Appelez-nous	-
24	98007126		Base, Foot		Appelez-nous	-
25	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 14.72
26	98014104		Cover, Socket		Appelez-nous	-
27	98007191		Shield, Lower		Appelez-nous	-
28	WP98008545		Screw   (Replaces: 98008545)				$ 18.60
29	W11173616		Cord, Power   (Replaces: 98014532)		Appelez-nous	-
30	98005026		Clip, Tubing		Appelez-nous	-
31	98015346		Foil, Side		Appelez-nous	-
32	98006634		Screw		Appelez-nous	-
33	98004447		Top, Oven		Appelez-nous	-
34	98004451		Side, Oven (left Hand)		Appelez-nous	-
34	98004452		Side, Oven (right Hand)		Appelez-nous	-
35	98013777		Back, Oven		Appelez-nous	-
36	98015363		Support, Rear				$ 85.97
37	8009		Bulb, Light   (Replaces: 98004498)			Immediately	$ 18.67
38	W10856866		Socket, Light   (Replaces: W10114530)				$ 7.55
NI	W10183196		Insulation, Wrap		Appelez-nous	-
NI	W10137233		Insulation, Back		Appelez-nous	-
NI	W10137223		Insulation, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
