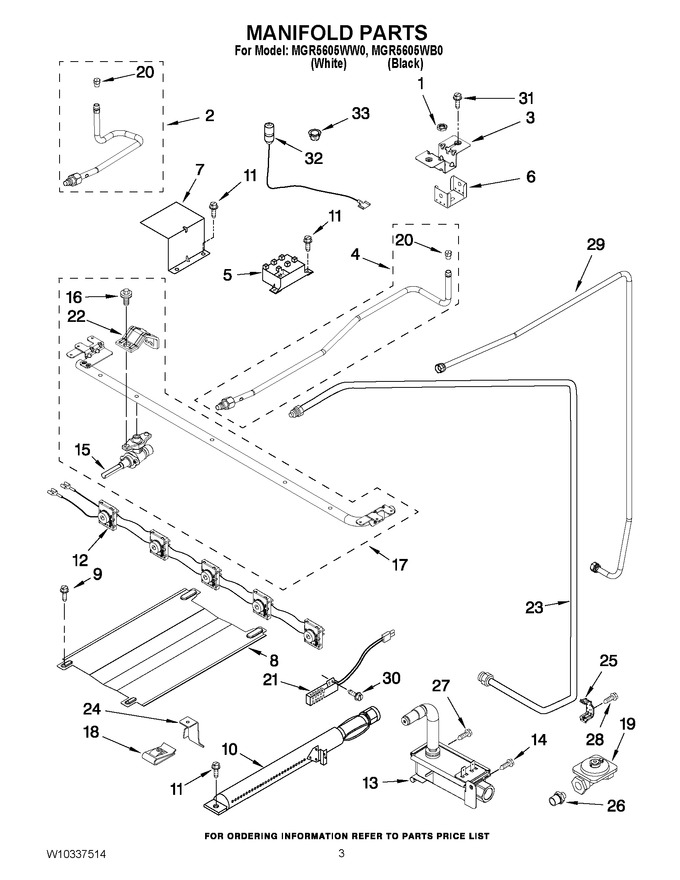

03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98017323		Nut		Appelez-nous	-
2	WP98017583		Venturi, Front (lf)   (Replaces: 98017583)				$ 187.73
2	WP98017582		Venturi, Front (rf)   (Replaces: 98017582)				$ 177.79
3	WP98017741		Bracket, Venturi   (Replaces: 98017741)				$ 90.38
4	WP98017359		Venturi, Rear   (Replaces: 98017359)				$ 194.34
5	W11590249		Spark Module   (Replaces: 98003960)				$ 24.51
6	W10306464		Cover, Bracket		Appelez-nous	-
7	98007192		Cover, Module		Appelez-nous	-
8	98015099		Spreader, Flame				$ 283.86
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 14.72
10	WP98012138		Burner, Oven   (Replaces: 98012138)				$ 234.42
11	W10837731		Screw   (Replaces: 98006633)				$ 8.30
12	WPW10361492		Harness, Switch   (Replaces: 98014545)				$ 211.77
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 165.35
14	W10837731		Screw   (Replaces: 98006633)				$ 8.30
15	WPW10141709		Valve, Burner (lf, Lr, Rf, Rr)   (Replaces: W10141709)			Immediately	$ 241.87
16	98017517		Bolt, Valve Mtg		Appelez-nous	-
17	W10145011		Assembly, Manifold		Appelez-nous	-
18	98009179		U-nut				$ 14.03
19	98007411		Regulator				$ 130.98
20	WP98017348		Orifice (rf, Rr, Lr)   (Replaces: 98017348)				$ 91.99
20	WP98017349		Orifice (lf)   (Replaces: 98017349)				$ 94.06
21	W10918546		Ignitor, Oven Pilot)   (Replaces: W10140611)			Immediately	$ 61.55
22	98017516		Bracket, Valve				$ 93.53
23	98007428		Tubing (regulator To Oven Valve)		Appelez-nous	-
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8to9/16				$ 129.01
27	98013634		Screw		Appelez-nous	-
28	1180823		Screw		Appelez-nous	-
29	WP98017171		Tubing, Inlet   (Replaces: 98017171)				$ 271.97
30	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
31	W10837674		Screw   (Replaces: W10146346)				$ 8.05
32	WPW10209657		Ignitor, Top (left Rear)   (Replaces: W10209657)				$ 56.66
32	WPW10209656		Ignitor, Top (rf, Rr, Lf)   (Replaces: W10209656)			Immediately	$ 85.25
33	WPW10278150		Clip, Ignitor   (Replaces: W10278150)				$ 45.12
NI	WPW10032030		Lp Orifice Kit (for Use With Lp)   (Replaces: W10032030)				$ 112.96
