SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Air Flow


04 - Freezer Liner


05 - Refrigerator Shelf


06 - Motor And Ice Container

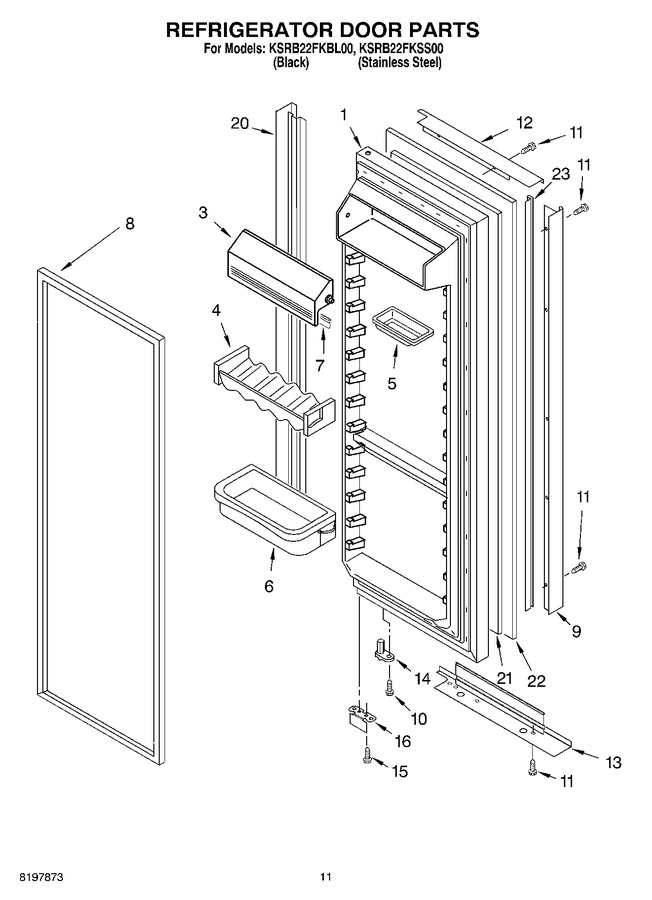

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219842B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2205821		Shelf Bin		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2196237)				$ 335.58
9	2206846S		Handle (stainless Steel)		Appelez-nous	-
9	2206846B		Handle (black)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
12	2206790B		Trim, Door Top (black)		Appelez-nous	-
12	2206790S		Trim, Door Top (stainless Steel)		Appelez-nous	-
13	2206792S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
13	2206792B		Trim, Door Bottom (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2206630		Bracket, Door Stop (black)		Appelez-nous	-
20	2206849B		Trim, Hinge Side (black)		Appelez-nous	-
20	2206849S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
21	2219804		Board, Filler		Appelez-nous	-
22	2206886B		Panel, Door (black)		Appelez-nous	-
22	2206892S		Panel, Door (stainless Steel)		Appelez-nous	-
23	2206894B		Edging, Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
