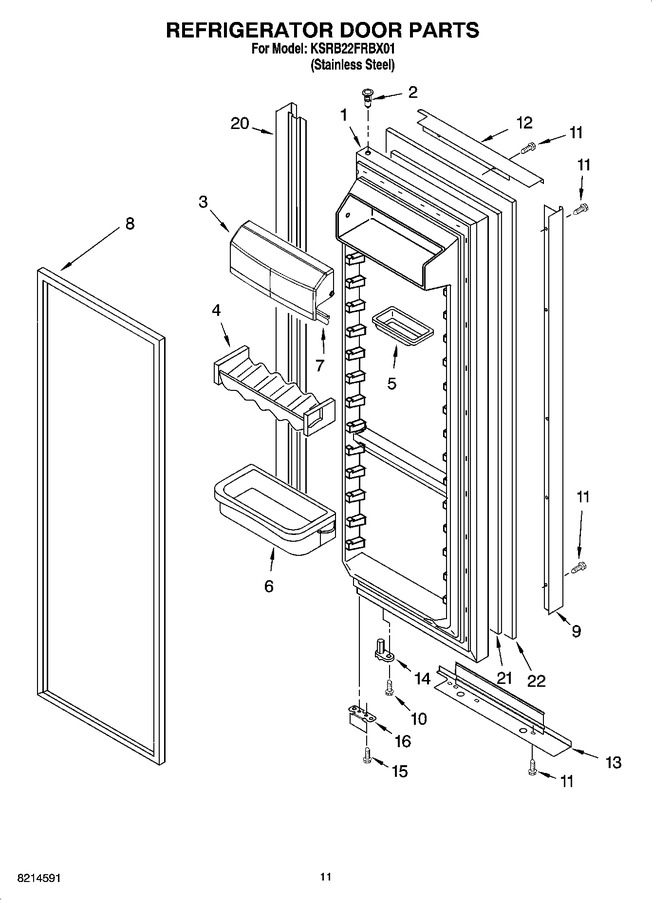

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219842B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
3	2301486		Door Compartment (includes 7)		Appelez-nous	-
4	2193409K		Beverage Holder		Appelez-nous	-
5	2165792K		Dish, Butter				$ 9.72
6	2205821K		Shelf Bin		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 335.58
9	2206846S		Handle		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
12	2220432S		Trim, Door Top (stainless Steel)		Appelez-nous	-
13	2220437S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
20	2220431S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
21	2219804		Board, Filler		Appelez-nous	-
22	2206892S		Panel, Door (stainless Steel)		Appelez-nous	-
