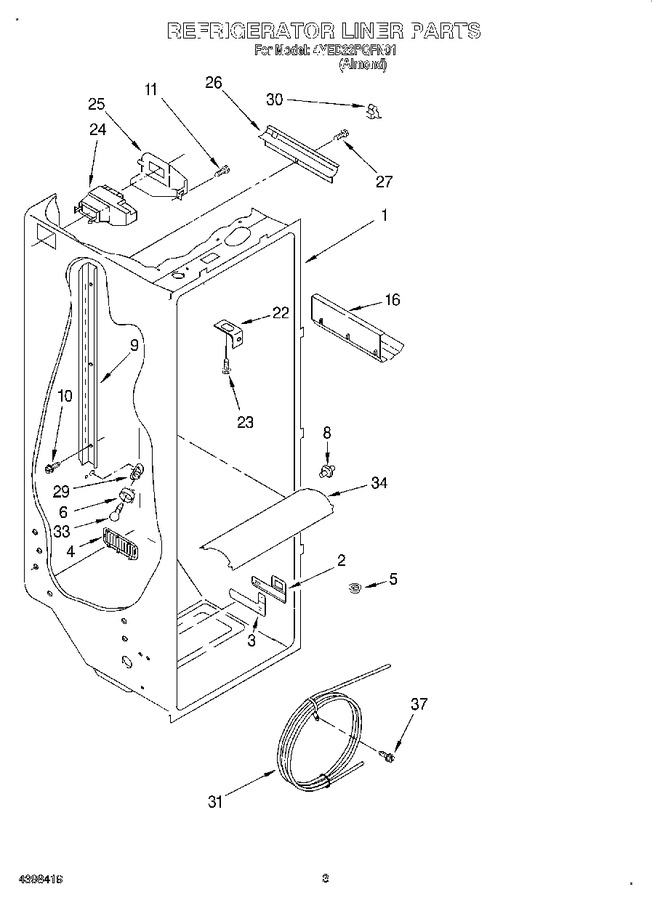

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 86.26 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 5 | 2171846 | Release Valve |
|
$ 18.99 | |||||
| 6 | WP2175210 | Shroud, Bracket (Replaces: 2169193) |
|
$ 78.07 | |||||
| 8 | 4388538 | Stud (8) (Replaces: 1110718) |
|
Immediately | $ 29.57 | ||||
| 9 | 2181796 | Ladder, Shelf (2) |
|
- | |||||
| 10 | WP488729 | Screw (6) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 11 | WP489478 | Screw (2) (Replaces: 489478) |
|
$ 7.36 | |||||
| 16 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 22.30 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 32.49 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.67 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2208271) |
|
Immediately | $ 94.29 | ||||
| 25 | 2152019 | Cover, Air Diffuser |
|
$ 81.30 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 23.06 | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.42 | |||||
| 29 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 9.85 | |||||
| 31 | WP2256126 | Reservoir (Replaces: 2196171) |
|
$ 159.56 | |||||
| 33 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.11 | ||||
| 34 | 2203266 | Light Lens |
|
$ 45.86 | |||||
| 37 | 488280 | Screw (2) |
|
- |
