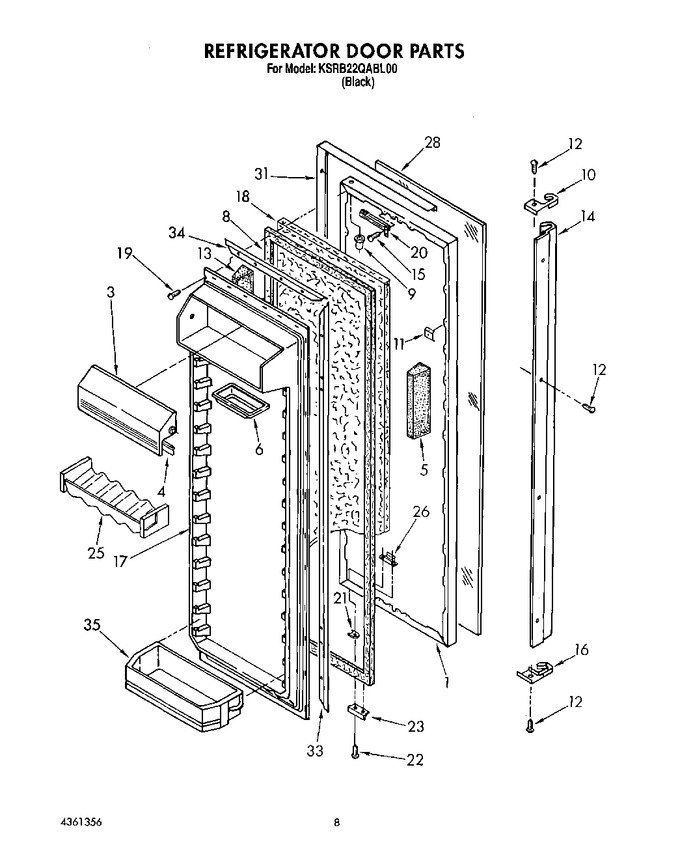

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2161504		Refrigerator Door (also Order Item 18)		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
5	1126149		Dike, Door Handle Side		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1125927)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1125918		End Cap, Top		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	489376		Screw (2)		Appelez-nous	-
13	1126150		Dike, Door Hinge Side		Appelez-nous	-
14	1125919		Handle		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 7.79
16	1125917		End Cap, Bottom		Appelez-nous	-
17	1117904		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 7.86
20	1117898		Door Closer, Upper Cam		Appelez-nous	-
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
23	1115906		Bracket, Door Stop		Appelez-nous	-
25	1125981		Holder, Beverage		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
28	1126018		Black Glass		Appelez-nous	-
31	1117899		Trim, Door		Appelez-nous	-
33	1117766		Gasket Retainer, Side (2)				$ 36.55
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	1125555		Shelf Bin (4)		Appelez-nous	-
