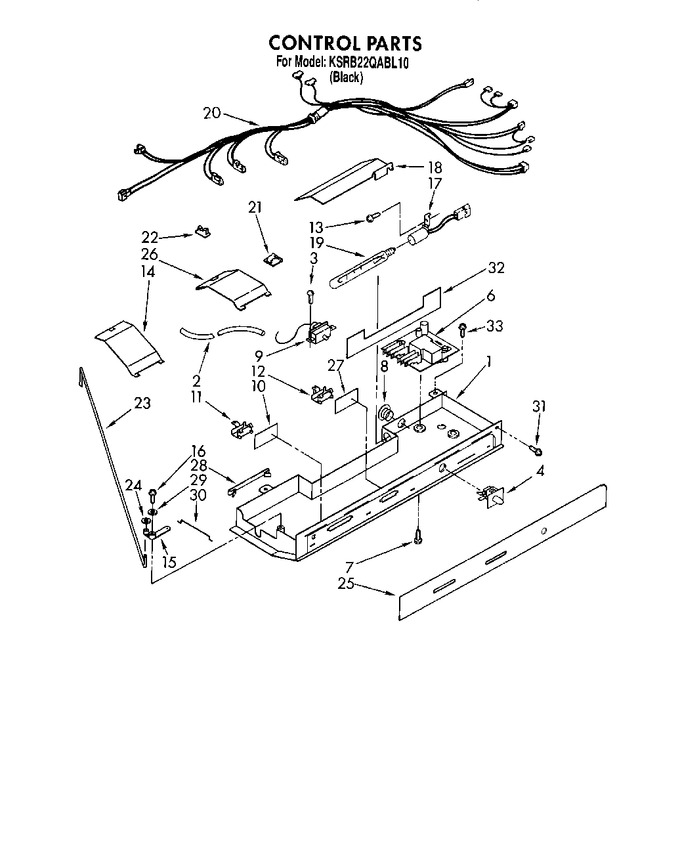

09 - Control


10 - Air Flow


11 - Icemaker


12 - Freezer Liner, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2155703		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 7.95
3	2006254		Screw   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
6	4388932		Adaptive Defrost Control   (Replaces: 2154958)			Immediately	$ 267.09
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2315562		Thermostat   (Replaces: 2161282)			Immediately	$ 106.18
10	1126028		Window		Appelez-nous	-
11	1125592		Slide, Air Control		Appelez-nous	-
12	1125591		Slide, Thermostat		Appelez-nous	-
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	1118072		Light Bar		Appelez-nous	-
15	2161306		Arm, Pivot				$ 9.65
16	627068		Screw				$ 12.12
17	1110690		Light Socket		Appelez-nous	-
18	1118033		Heat Shield		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
20	2162461		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	2161308		Connecting Rod				$ 172.11
24	489391		Fastener, Push-on				$ 7.52
25	2155695		Escutcheon, Control Box		Appelez-nous	-
26	1126089		Light Bar		Appelez-nous	-
27	1126027		Window		Appelez-nous	-
28	1125811		Clip, Control Box		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
32	1127141		Heat Shield		Appelez-nous	-
33	WP488488		Screw   (Replaces: 489290)				$ 7.68
