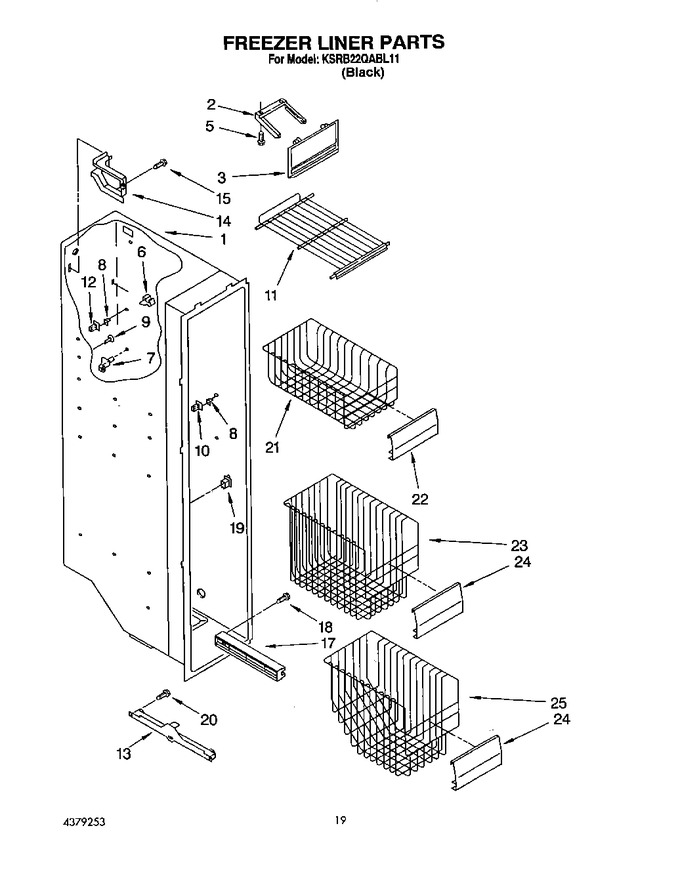

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 1115380 | Slide, Ice Door |
|
- | |||||
| 3 | 1125821 | Door, Ice Compartment |
|
- | |||||
| 5 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 1115317 | Support, Stud (4) |
|
- | |||||
| 8 | 946355 | Support, Stud (2) |
|
- | |||||
| 9 | 1110779 | Grommet (2) |
|
- | |||||
| 10 | 946356 | Stud, Front |
|
- | |||||
| 11 | 2161946 | Shelf |
|
- | |||||
| 12 | 1106982 | Stud, Rear |
|
- | |||||
| 13 | W10845585 | Slide, Ice Container (left Side) (Replaces: 1119237) |
|
$ 132.77 | |||||
| 13 | W10845583 | Slide, Ice Container (right Side) (Replaces: 1119293) |
|
$ 123.92 | |||||
| 14 | 2155572 | Cover, Wiring |
|
- | |||||
| 15 | WP488729 | Screw (Replaces: 489176) |
|
Immediately | $ 7.79 | ||||
| 17 | 1126354 | Shelf Track (right Side (3)) |
|
- | |||||
| 17 | 1126355 | Shelf Track (left Side (3)) |
|
- | |||||
| 18 | W11693756 | Screw (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 20 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 21 | 2161563 | Basket, Small |
|
- | |||||
| 22 | 1125771 | Front, Basket |
|
- | |||||
| 23 | 2152100 | Basket, Upper |
|
- | |||||
| 24 | 1125613 | Front, Basket |
|
- | |||||
| 25 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 25 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | |||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 25 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 25 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 25 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 25 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 25 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 25 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 25 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 25 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 25 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 25 | 2152103 | Basket, Lower |
|
- | |||||
| 25 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | |||||
| 25 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 25 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 25 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 25 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 25 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 25 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 231.56 | |||||
| 25 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 25 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 25 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 25 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 25 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 25 | 515393 | Transformer (115-230 Volt) |
|
- | |||||
| 25 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| WPW10312301 | Ice Crusher Assembly (Replaces: 2152735) |
|
$ 430.90 | ||||||
| LIT628370 | Modular Icemaker Service Sheet |
|
- | ||||||
| LIT2168661 | Energy Label |
|
- | ||||||
| LIT2162496 | Service And Wiring Sheet |
|
- | ||||||
| LIT2161900 | Use And Care Guide |
|
- |
