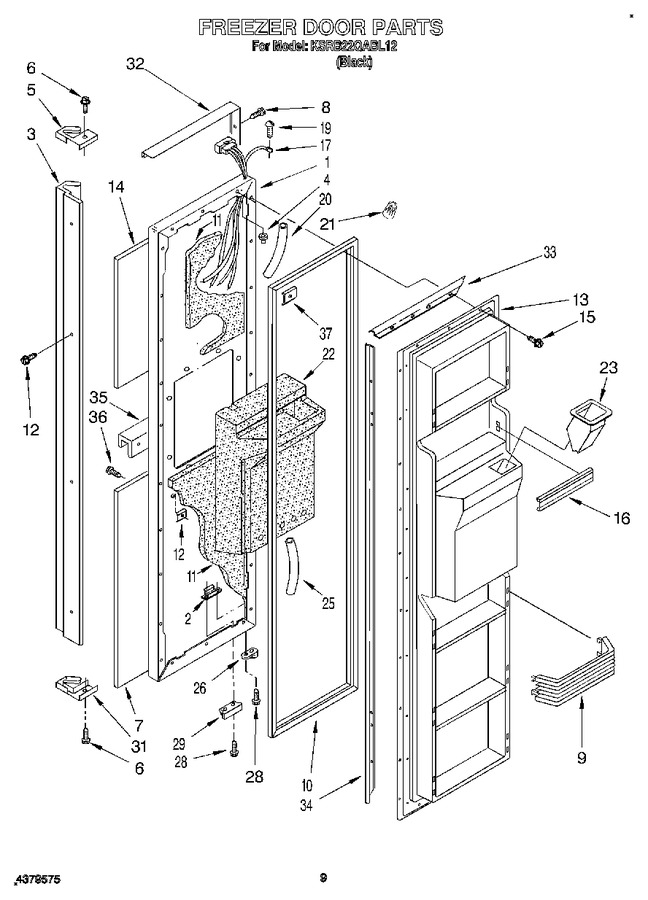

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2161507		Freezer, Door Panel (also Order Item 11)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	1125919		Handle Assembly		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1125917		End Cap, Top		Appelez-nous	-
6	489112		Screw		Appelez-nous	-
7	1126020		Black Glass, Lower		Appelez-nous	-
8	489376		Screw		Appelez-nous	-
9	1117928		Shelf Bin (4)		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1125926)				$ 351.08
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1126179		Panel, Interior Door		Appelez-nous	-
14	1126019		Black Glass, Upper		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	1126496		Trim, Door Shelf		Appelez-nous	-
17	1119212		Harness, Door		Appelez-nous	-
19	WP488234		Screw   (Replaces: 489422)				$ 6.74
20	1119059		Tube, Door Wiring		Appelez-nous	-
21	227991		Wire Connector		Appelez-nous	-
22	2149014		Insulation, Dispenser		Appelez-nous	-
23	1119036		Chute, Ice		Appelez-nous	-
25	2147080		Tube, Door Wiring		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
28	WP999367		Screw   (Replaces: 489367)				$ 7.86
29	2155334		Bracket, Door Stop		Appelez-nous	-
31	1125918		End Cap, Bottom		Appelez-nous	-
32	1125921		Trim, Door		Appelez-nous	-
33	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
34	1117766		Gasket Retainer, Side (2)				$ 36.55
35	1125979		Trim, Dispenser		Appelez-nous	-
36	489374		Screw		Appelez-nous	-
37	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
