Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2189708 Refrigerator Door (includes No.7) Appelez-nous -
2 489481 Screw Appelez-nous -
3 2171078 Door, Compartment Appelez-nous -
4 2193409 Beverage Holder Special Order $ 48.13

5 2165792 Tray, Butter Appelez-nous -
6 2171283 Load Lock Appelez-nous -
7 2159081 Door Gasket, Magnetic (service) Special Order $ 335.58

8 1125918 End Cap, Top Appelez-nous -
10 1125917 End Cap, Bottom Appelez-nous -
11 1125919 Handle Appelez-nous -
12 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

13 2155334 Bracket, Door Stop Appelez-nous -
14 1126018 Black Glass Appelez-nous -
15 1117899 Trim, Door Appelez-nous -
16 2171063 Shelf Bin (4) Appelez-nous -
17 2159124 Gasket Appelez-nous -
18 4318165 Door Closer, Upper Cam   (Replaces: 2155312) In-Stock Immediately $ 29.74


    View Diagram in Separate Window     Print Icon   Print Part List

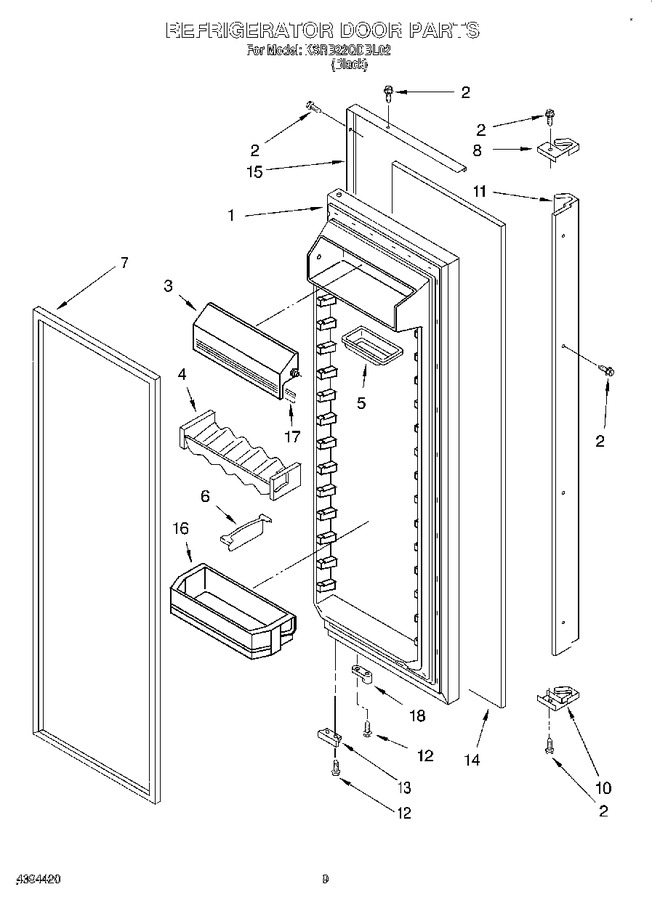

Diagram for KSRB22QDBL02
