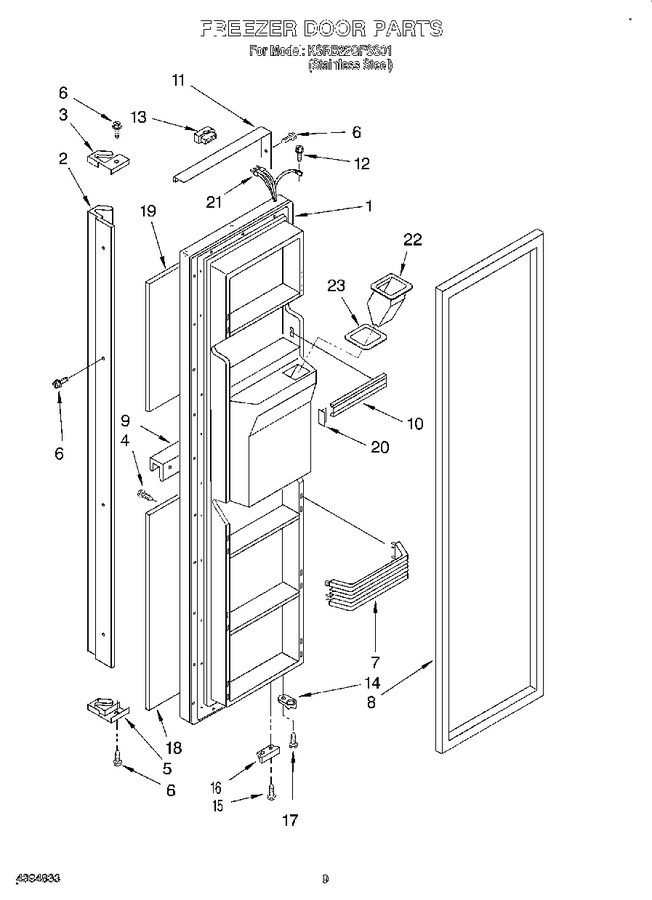

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194960		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194947		Handle		Appelez-nous	-
3	2198098		End Cap		Appelez-nous	-
4	489374		Screw		Appelez-nous	-
5	2198100		End Cap, Bottom		Appelez-nous	-
6	489481		Screw		Appelez-nous	-
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service)				$ 310.39
9	2194944		Trim, Dispenser		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 23.11
11	2194954		Trim, Door		Appelez-nous	-
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
13	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2195950		Bracket, Door Stop				$ 5.84
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2194933		Panel, Lower (stainless Steel)		Appelez-nous	-
19	2194932		Panel, Upper (stainless Steel)		Appelez-nous	-
20	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.18
21	2198272		Wire Harness		Appelez-nous	-
22	2180204		Chute, Ice		Appelez-nous	-
23	2198249		Seal, Housing		Appelez-nous	-
