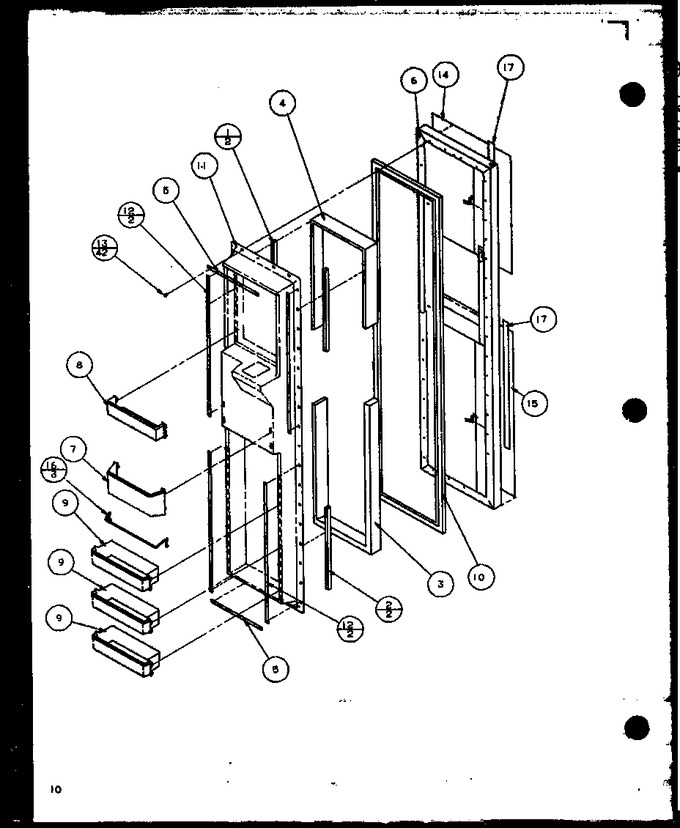

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	C8982801		Retainer, Door Liner		Appelez-nous	-
6	10300502WQ		Fz Dr Fm As Cfc 11		Appelez-nous	-
7	D7783508		Shelf, Half Fz. Dr		Appelez-nous	-
8	D7783607		Shelf Fz Door		Appelez-nous	-
9	D7783707		Bucket Frz Door		Appelez-nous	-
10	10359702		Gasket (w Frz Dr)		Appelez-nous	-
11	D7828904		Liner I & W Fr Door		Appelez-nous	-
12	D7828601		Retainer, Door Liner		Appelez-nous	-
13	M0219730		Screw				$ 7.65
16	10169402		Retainer, Package		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
