Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2161507 Freezer, Door Panel (also Order Item 11) (black) Appelez-nous -
1 1125989 Freezer, Door Panel (also Order Item 11) (white) Appelez-nous -
1 1125997 Freezer, Door Panel (also Order Item 11) (almond) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 1125919 Handle Assembly Appelez-nous -
4 939886 Seal, Hinge Pin Appelez-nous -
5 1125917 End Cap, Top Appelez-nous -
6 N/A Washer Appelez-nous -
7 1126020 Black Glass, Lower Appelez-nous -
8 489376 Screw Appelez-nous -
9 1117928 Shelf Bin (4) Appelez-nous -
10 2188405A Door Gasket, Magnetic   (Replaces: 1125926) Special Order $ 351.08

11 876029 Foam Insulation Appelez-nous -
12 941242 Screw Anchor (2) Appelez-nous -
13 1126179 Panel, Interior Door Appelez-nous -
14 1126019 Black Glass, Upper Appelez-nous -
15 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 7.67

15 WP489069 Screw, 7 X 1/2 (28)   (Replaces: 489101) In-Stock Immediately $ 7.86

16 1126496 Trim, Door Shelf Appelez-nous -
17 1119212 Harness, Door (includes Item 18) Appelez-nous -
18 936183 Connector, Plug Appelez-nous -
19 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 6.74

20 1119059 Tube, Door Wiring Appelez-nous -
21 227991 Wire Connector Appelez-nous -
22 2149014 Insulation, Dispenser Appelez-nous -
23 1119036 Chute, Ice Appelez-nous -
24 534927 Hole Plug (2) Appelez-nous -
25 2147080 Tube, Door Wiring Appelez-nous -
26 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 27.36

27 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58

28 WP489069 Screw   (Replaces: 488938) In-Stock Immediately $ 7.86

29 1115906 Bracket, Door Stop Appelez-nous -
30 988421 Shim Appelez-nous -
31 1125918 End Cap, Bottom Appelez-nous -
32 1125921 Trim, Door Appelez-nous -
33 1117767 Gasket Retainer, Top & Bottom Appelez-nous -
34 1117766 Gasket Retainer, Side (2) Special Order $ 36.55

35 1125979 Trim, Dispenser Appelez-nous -
36 489374 Screw Appelez-nous -
37 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.50


    View Diagram in Separate Window     Print Icon   Print Part List

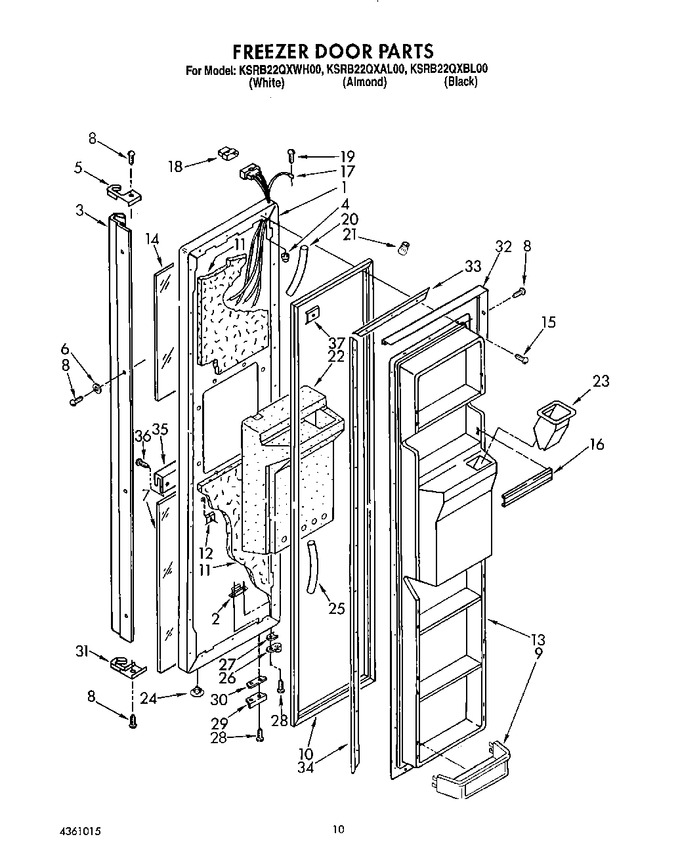

Diagram for KSRB22QXWH00
