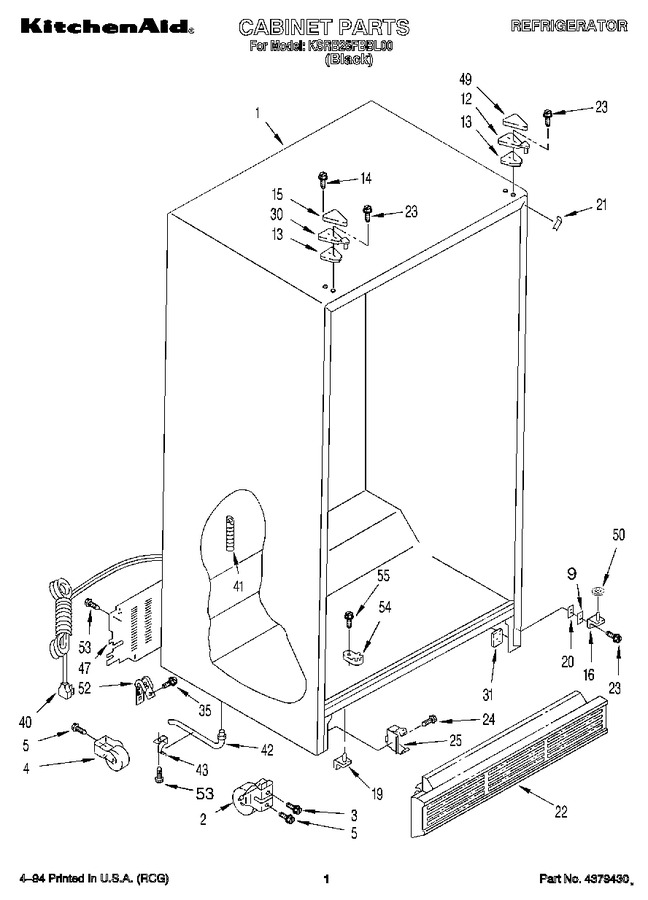

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2152011 | Front Roller (2) |
|
- | |||||
| 3 | 489393 | Screw |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 5 | 488454 | Screw, |
|
- | |||||
| 9 | 836196 | Shim |
|
- | |||||
| 12 | 1117937 | Hinge Top (r.h.) |
|
- | |||||
| 13 | 1123518 | Shim, Hinge Top |
|
- | |||||
| 14 | 489284 | Screw |
|
- | |||||
| 15 | 1115888 | Hinge Cover |
|
- | |||||
| 16 | 2155320 | Hinge Bottom (r.h) |
|
- | |||||
| 19 | 2155322 | Hinge Bottom (l.h) |
|
- | |||||
| 20 | 1129868 | Spacer, Hinge |
|
- | |||||
| 21 | 1127272 | Filler, Wrapper |
|
- | |||||
| 22 | 2155485 | Grille |
|
$ 55.93 | |||||
| 23 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 24 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 25 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 30 | 2155449 | Hinge Top (l.h.) |
|
- | |||||
| 31 | 2147310 | Tap Plate (2) |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.83 | ||||
| 40 | 937360 | Cord, Service |
|
- | |||||
| 41 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 47 | WP2188755 | Cover, Unit (Replaces: 2171576) |
|
$ 135.91 | |||||
| 49 | 2155938 | Hinge Cover |
|
$ 15.55 | |||||
| 50 | 489328 | Washer |
|
- | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 54 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155309) |
|
Immediately | $ 5.43 | ||||
| 55 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 |
