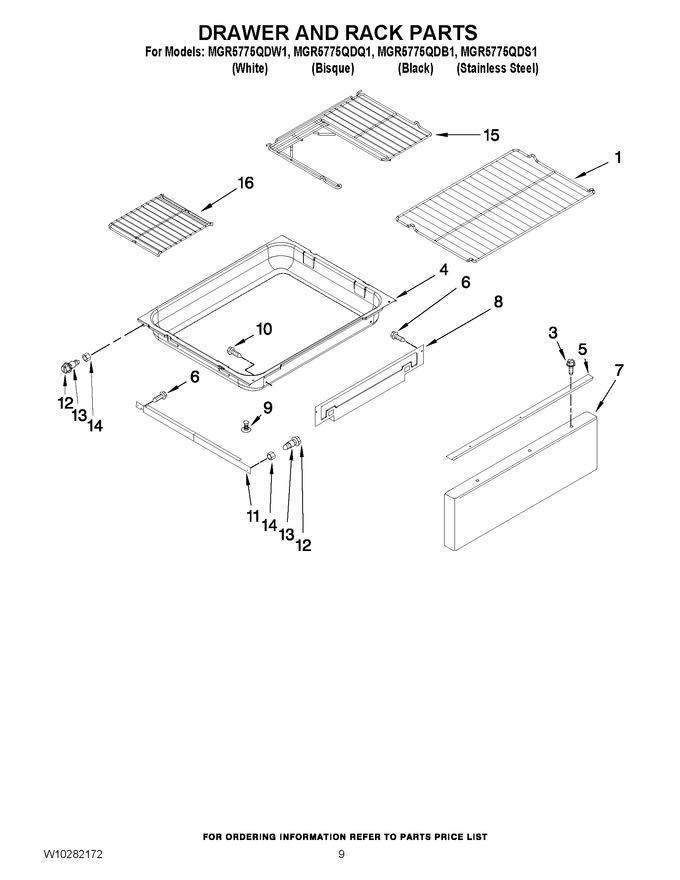

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven   (Replaces: W10179196)			Immediately	$ 46.84
3	W11233072		Screw   (Replaces: 74009268)			Immediately	$ 14.02
4	WP3405F037-80		Drawer   (Replaces: 3405F037-80)				$ 338.87
5	7701P547-60		Handle, Ss Model				$ 89.46
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.02
7	2416F104-70		Panel, Drawer Frnt (black)				$ 16.56
7	2416F104-78		Panel, Drawer Frnt (bisque)		Appelez-nous	-
7	2416F104-71		Panel, Drawer Frnt (white)		Appelez-nous	-
7	7760P228-60		Panel, Drawer Frnt (stainless)		Appelez-nous	-
8	3605P337-51		Panel, Inner				$ 48.45
9	8038P037-60		Drawer, Stop		Appelez-nous	-
10	WP7101P072-60		Screw   (Replaces: 7101P072-60)				$ 7.52
11	3406P034-51		Rail, Drawer				$ 33.42
12	7118P032-60		Shaft, Storage Drawer Roller		Appelez-nous	-
13	W10272883		Roller, Drawer				$ 7.90
14	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.97
15	7801P139-60		Rack, Half		Appelez-nous	-
16	W10275560		Insert, Half Rack				$ 69.52
