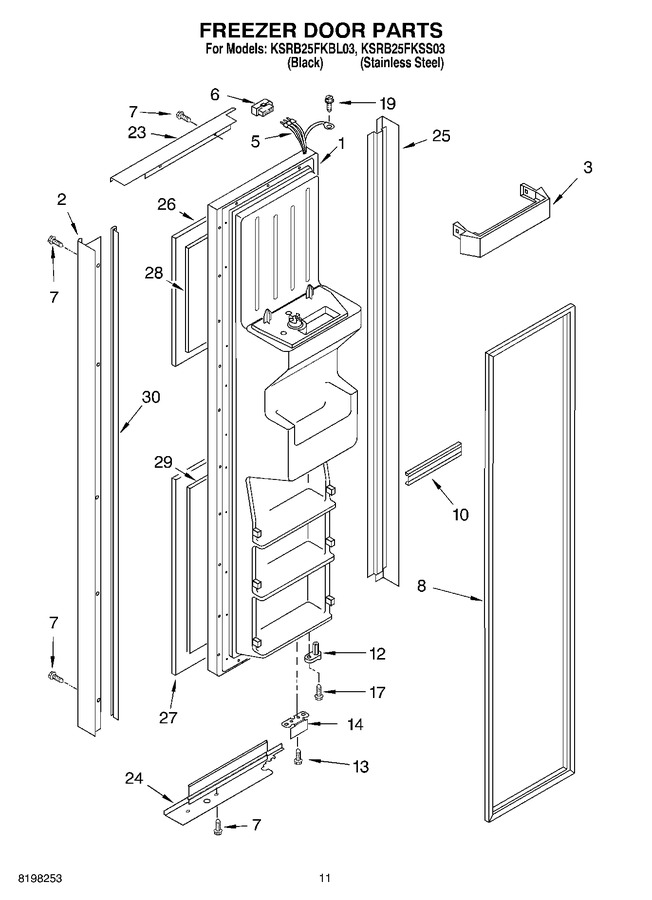

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219840B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 2 | 2206851S | Handle (stainless Steel) |
|
- | |||||
| 2 | 2206851B | Handle (black) |
|
- | |||||
| 3 | 2171070 | Shelf Bin (3) |
|
- | |||||
| 5 | 2206178 | Dispenser Harness |
|
$ 36.28 | |||||
| 6 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 7 | 3400899 | Screw (black) |
|
$ 7.74 | |||||
| 7 | 3400897 | Screw (stainless Steel) |
|
- | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 316.66 | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | 2206630B | Bracket, Door Stop |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 23 | 2220433B | Trim, Door Top (black) |
|
- | |||||
| 23 | 2220433S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 24 | 2220435B | Trim, Door Bottom (black) |
|
- | |||||
| 24 | 2220435S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 25 | 2220428S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 25 | 2220428B | Trim, Hinge Side (black) |
|
- | |||||
| 26 | 2206881B | Panel, Door Upper (black) |
|
- | |||||
| 26 | 2206887S | Panel, Door Upper (stainless Steel) |
|
- | |||||
| 27 | 2206882B | Panel, Door Lower (black) |
|
- | |||||
| 27 | 2206888S | Panel, Door Lower (stainless Steel) |
|
- | |||||
| 28 | 2219799 | Filler, Board Upper |
|
- | |||||
| 29 | 2219800 | Filler, Board Lower |
|
- | |||||
| 30 | 2206893B | Egding, Panel (black) |
|
- |
