SELECT A DIAGRAM

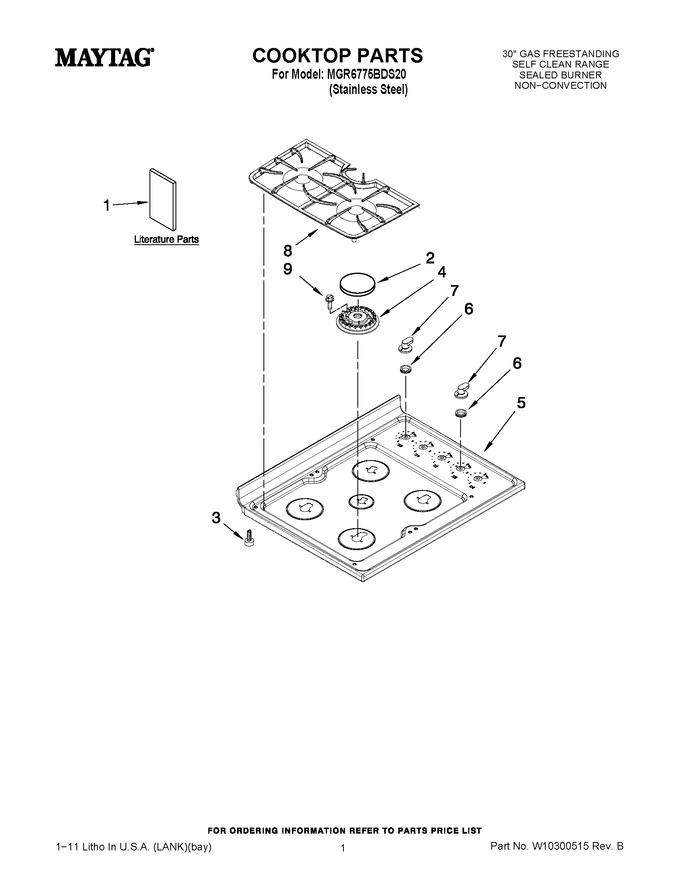

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P393-60		Diagram, Wiring		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
1	8101P623-60		Installation Instructions		Appelez-nous	-
1	8113P707-60		Owners Manual		Appelez-nous	-
2	W10173833		Cap, Burner (right Front)		Appelez-nous	-
2	WPW10169983		Cap, Burner (left Front)   (Replaces: W10169983)				$ 94.17
2	WPW10169985		Cap, Burner (center)   (Replaces: W10169985)				$ 63.48
2	WPW10169984		Cap, Burner (lr/rr)   (Replaces: W10169984)				$ 68.33
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 16.77
4	WPW10406283		Burner (lr/rr 9.2k)   (Replaces: W10194076)				$ 74.30
4	WPW10406878		Burner (left Front 17k)   (Replaces: 8286183)				$ 102.36
4	WPW10406797		Burner (right Front 12k)   (Replaces: 8286182)				$ 88.49
4	WPW10406243		Burner (center 6k)   (Replaces: 8286181)			Immediately	$ 37.22
4	WPW10406283		Burner (lr/rr 9.2k)   (Replaces: 7540P043-60)				$ 74.30
5	W10292704		Cooktop (blk)		Appelez-nous	-
6	8285469		Grommet, Knob (4)				$ 50.00
7	7733P423-60		Knob, Control (4)		Appelez-nous	-
8	7518P284-60		Grate, Burner (2) (includes Bumpers)		Appelez-nous	-
9	WP3368921		Screw (10)   (Replaces: 3368921)			Immediately	$ 7.13

    View Diagram in Separate Window       Print Part List
