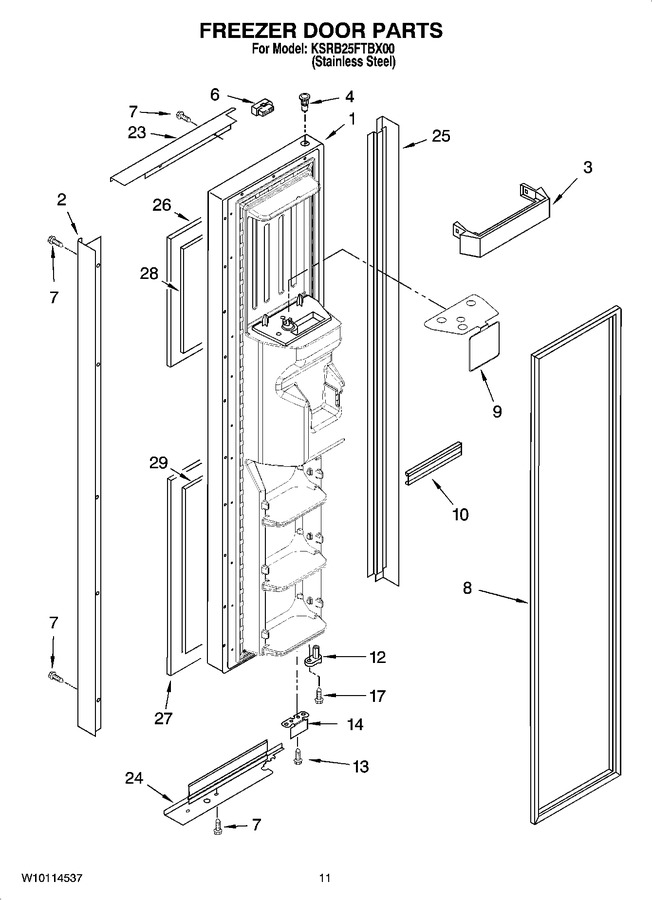

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318966B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2206851S		Handle (stainless Steel)		Appelez-nous	-
3	2171070K		Shelf Bin (3)				$ 39.09
4	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	WP3196175		Screw (stainless Steel)   (Replaces: 3196165)			Immediately	$ 7.55
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	2304895		Barrier, Safety		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2206630B		Bracket, Door Stop		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
23	2220433S		Trim, Door Top (stainless Steel)		Appelez-nous	-
24	2220435S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
25	2220428S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
26	2206887S		Panel, Door Upper (stainless Steel)		Appelez-nous	-
27	2206888S		Panel, Door Lower (stainless Steel)		Appelez-nous	-
28	2219799		Filler, Board Upper		Appelez-nous	-
29	2219800		Filler, Board Lower		Appelez-nous	-
