SELECT A DIAGRAM

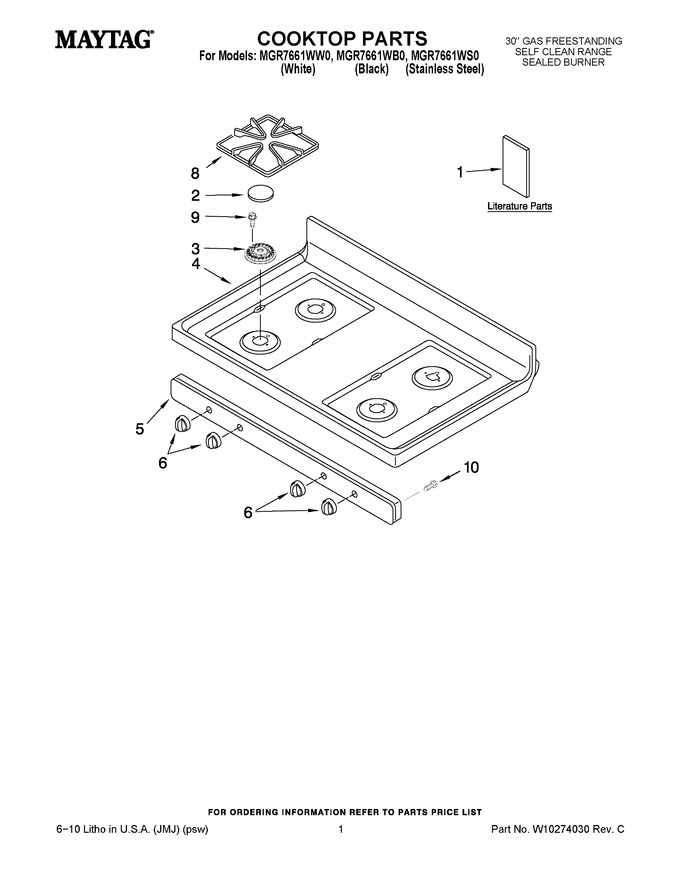

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196160		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10234648		Owners Manual		Appelez-nous	-
1	W10198635		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	W10205324		Cap, Burner Left Front (grey)		Appelez-nous	-
2	WPW10169984		Cap, Burner Right Rear (black)   (Replaces: W10169984)				$ 71.75
2	W10205325		Cap, Burner Right Rear (grey)		Appelez-nous	-
2	WPW10169985		Cap, Burner Left Front (black)   (Replaces: W10169985)				$ 66.65
2	W10173833		Cap, Burner R. Front, L. Rear (black)		Appelez-nous	-
2	W10205326		Cap, Burner R. Front, L. Rear (grey)		Appelez-nous	-
3	WPW10406283		Burner (r. Front, L. Rear)   (Replaces: W10194076)				$ 78.02
3	WPW10406243		Burner (right Rear)   (Replaces: 8286181)			Immediately	$ 39.08
3	WPW10406797		Burner (left Front)   (Replaces: 8286182)				$ 92.91
4	8272253		Cooktop (black)		Appelez-nous	-
4	8272251		Cooktop (white)		Appelez-nous	-
5	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
5	8523856		Panel, Manifold (biscuit)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 176.18
6	WPW10200192		Knob, Control (4) (white)   (Replaces: W10200192)			Immediately	$ 83.92
6	WPW10200193		Knob, Control (4) (black)   (Replaces: W10200193)				$ 24.18
8	WPW10447925		Grate, Burner (4) (black)   (Replaces: 8522851)			Immediately	$ 299.55
8	8053391		Grate, Burner (4) (grey)				$ 242.28
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
