SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

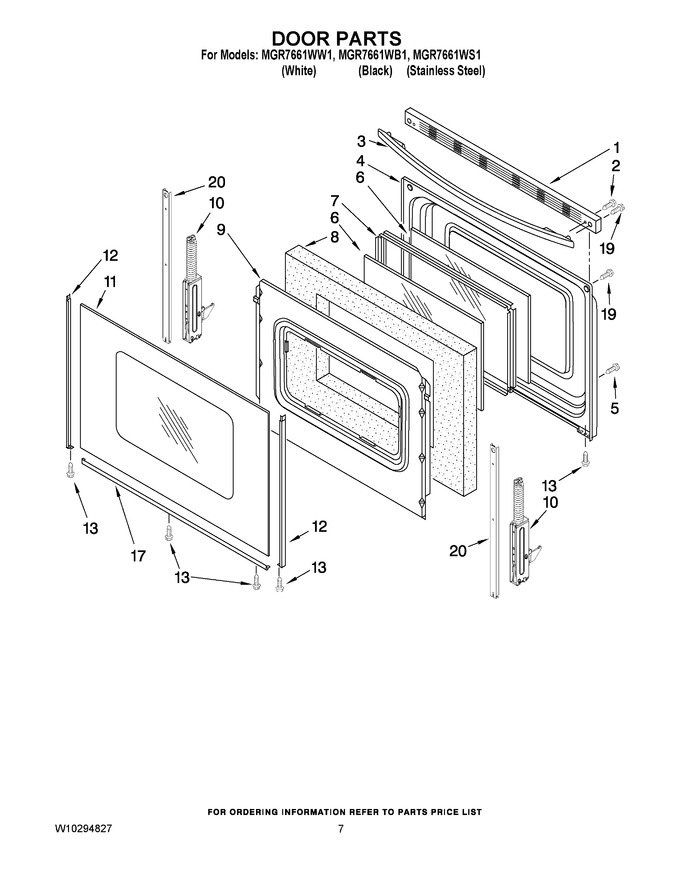

05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10118391) |
|
Immediately | $ 175.37 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10118390) |
|
Immediately | $ 103.27 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | W10111310 | Handle, Door (black) |
|
- | |||||
| 3 | W10111309 | Handle, Door (white) |
|
- | |||||
| 3 | W10171750 | Handle, Door (stainless Steel) |
|
$ 148.47 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | W10347466 | Hinge, Door (Replaces: 9761493) |
|
Immediately | $ 219.84 | ||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10106404) |
|
$ 324.91 | |||||
| 11 | W10106403 | Glass, Outer Door (stainless Steel) |
|
$ 124.91 | |||||
| 11 | W10106405 | Glass, Outer Door (black) |
|
$ 128.38 | |||||
| 12 | W10761018 | Trim, Door Side Left Hand (black) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523166 | Trim, Door Side Right Hand (white) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | W10761014 | Trim, Door Side Right Hand (black) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | WP8523172 | Trim, Door Side Left Hand (white) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 17 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 17 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 19 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 20 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 27.68 |
