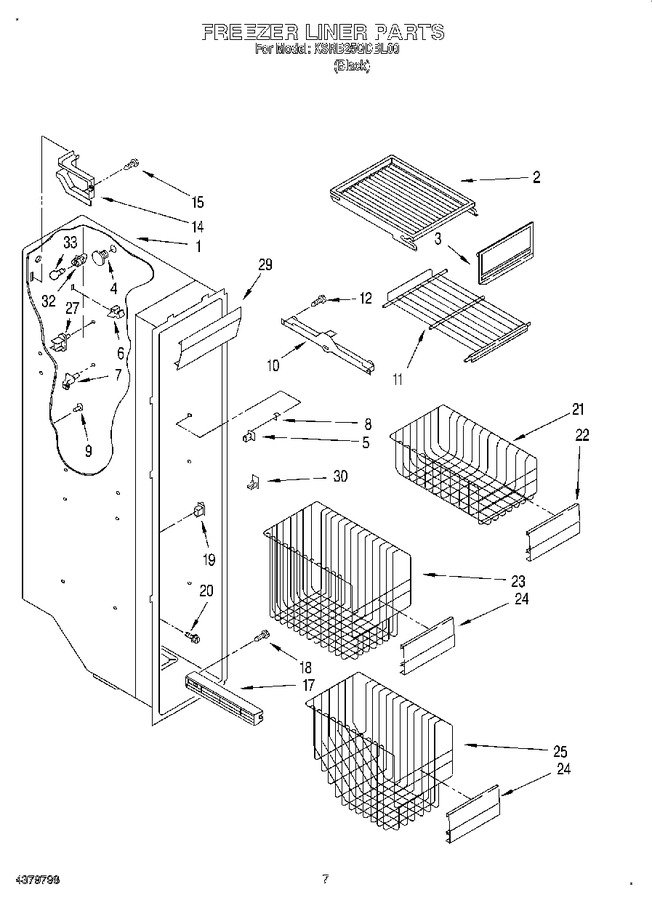

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2174493		Shelf, Top Compartment		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2179258)				$ 91.63
4	940014		Hole Plug				$ 18.33
5	946356		Stud, R.s. Front		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support, Stud (2)		Appelez-nous	-
9	2176134		Grommet (2)				$ 5.83
10	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
10	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
11	WP2174267		Shelf   (Replaces: 2174267)				$ 93.35
12	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
14	2155572		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
17	2171777		Shelf Track (left Side (3))		Appelez-nous	-
17	2171778		Shelf Track (right Side (3))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	WP489478		Screw   (Replaces: 489242)				$ 8.18
21	2171700		Basket, Middle		Appelez-nous	-
22	2171767		Front, Basket		Appelez-nous	-
23	2171702		Basket, Upper		Appelez-nous	-
24	2305580K		Basket, Front   (Replaces: 2171766)				$ 60.29
25	2171701		Basket, Lower		Appelez-nous	-
27	1115386		Stud, Shelf (4)		Appelez-nous	-
29	2171705		Lens, Light				$ 94.68
30	1106982		Stud, R.s. Rear		Appelez-nous	-
32	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
33	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 18.67
