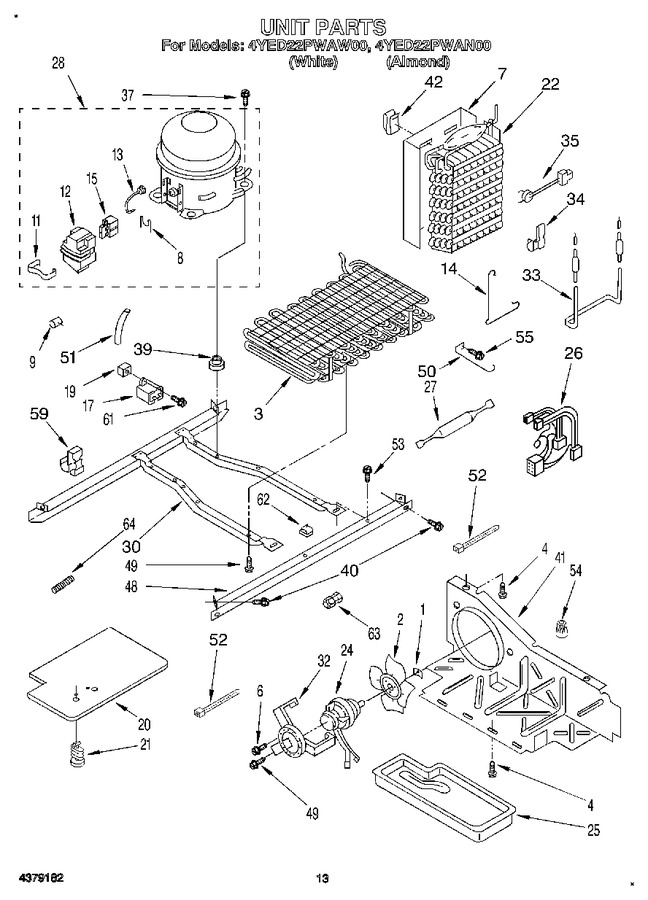

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	943320		Overload Spring		Appelez-nous	-
9	WP2158826		Dampener (3)   (Replaces: 2158826)				$ 1.82
11	2154721		Strap		Appelez-nous	-
12	2154722		Cover		Appelez-nous	-
13	2158785		Overload		Appelez-nous	-
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2154720		Relay		Appelez-nous	-
17	2154717		Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	2160505		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
24	8201703		Motor, Fan   (Replaces: 2162430)				$ 371.70
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2167065		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	2162439		Compressor (includes Items 8, 11, 12, 13, 15, 17 & 38) (also Order)		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 90.65
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
32	2162062		Bracket, Fan Motor		Appelez-nous	-
33	2162213		Heater, Defrost		Appelez-nous	-
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
38	2159678		Wire, Overload		Appelez-nous	-
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	2155547		Clip, Heat		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw   (Replaces: 489339)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 8.18
59	2155658		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
62	934011		Clip, Tube (3)		Appelez-nous	-
63	WP4211117		Union   (Replaces: 2150347)				$ 10.46
64	876764		Valve, Access(3/16``)			Immediately	$ 95.92
64	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
64	978028		Valve, Access (1/2)		Appelez-nous	-
64	978029		Valve Access (5/8``)				$ 93.85
64	978030		Valve, Access (3/4``)				$ 137.25
64	983659		Tube, Spring		Appelez-nous	-
64	978026		Valve, Access (5/16``)			Immediately	$ 134.49
64	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
