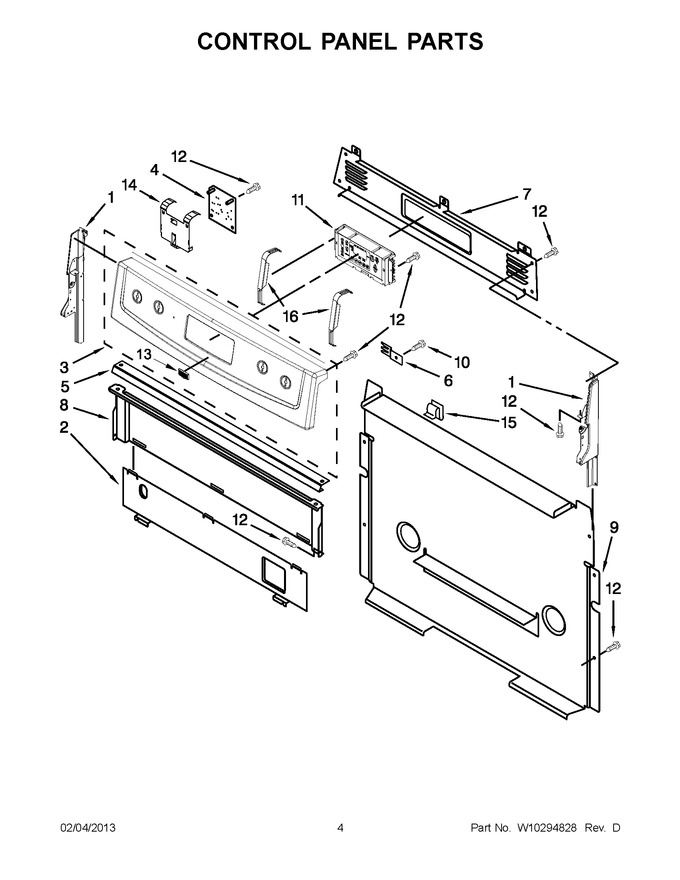

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 40.43
1	W11230612		Endcap (biscuit Right Hand)   (Replaces: W10184436)		Appelez-nous	-
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 40.44
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 57.93
1	W11230611		Endcap (biscuit Left Hand)   (Replaces: W10184435)		Appelez-nous	-
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 146.50
2	8053505		Heat Shield				$ 157.99
3	W10292030		Panel, Console (black)				$ 118.74
3	W10292029		Panel, Console (white)				$ 119.24
3	W10292032		Panel, Console (biscuit)		Appelez-nous	-
3	W10292031		Panel, Console (stainless)				$ 118.66
4	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
5	W10211996		Bracket, Console		Appelez-nous	-
6	8523412		Bracket, Rear Cooktop				$ 159.90
7	W10198745		Cover, Upper				$ 122.76
8	W10192841		Shield, Heat				$ 101.61
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W10236249		Control, Range (white (lcc 190))		Appelez-nous	-
11	WPW10271770		Control, Range (biscuit (lcc 190))   (Replaces: W10236251)				$ 380.12
11	W10236250		Control, Range (black (lcc 190))		Appelez-nous	-
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
13	W10199708		Badge				$ 50.74
14	W10516463		Bracket, Dsi   (Replaces: W10137524)		Appelez-nous	-
15	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.06
16	W11230932		Bracket, Mounting, Eoc   (Replaces: W10138683)			Immediately	$ 80.77
